Racing Wheel Stud Conversion Kit for Toyota Supra Mk5 - M14x1.25

  • $69.00
Shipping calculated at checkout.

SKU: **SHORT** M14x1.25x75mm Studs + M14x1.25x23 Lug nuts

Convert your Toyota Supra Mk5 to Italian made high quality racing wheel studs. Perfect for street and track applications!

This kit contains (10) wheel studs and (10) 17mm lug bolts and will convert 2 wheels.

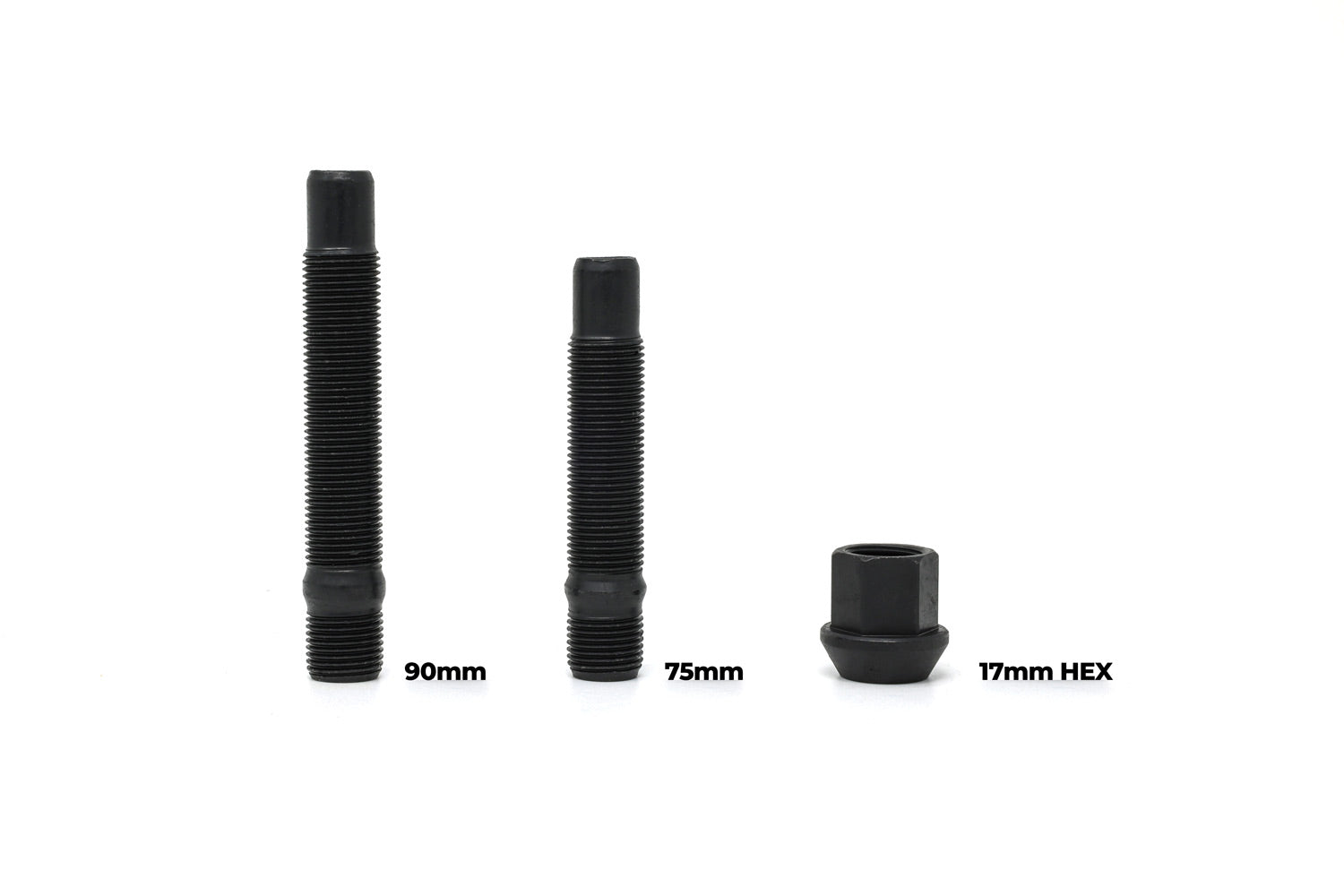

Available Wheel Stud Lengths (Can be used with or without spacers)

  • 75mm total length (60mm shank length): Allows for wheel spacer thicknesses up to 12mm
  • 90mm total length (75mm shank length): Allows for wheel spacer thicknesses up to 20mm

FREE Loctite® with purchase of 2 sets of wheel studs/nuts on the same receipt.

To get the FREE Loctite® 243 with purchase of 2 sets of wheel studs/nuts purchase, add 2 sets of wheel studs/lug nuts to your cart, go to the link below and add the Loctite® 243 to the cart. When you hit the checkout button the items will be discounted to FREE!


Click Here for the Loctite® 243 ($7.00 Value)

Wheel Stud Features & Benefits

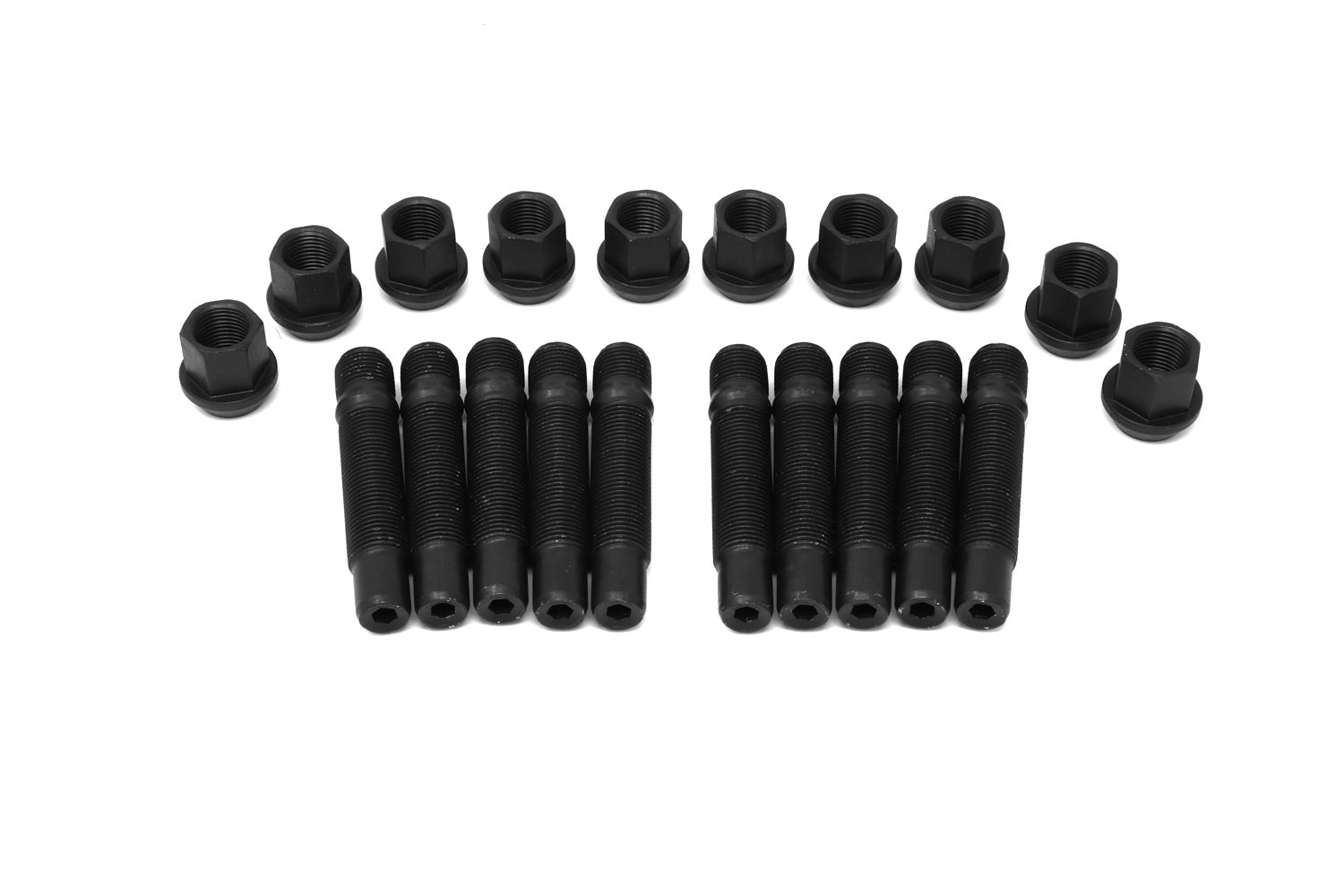

  • Each kit comes complete with (10) Wheel Studs & (10) Lug Nuts
  • Each wheel stud is x-rayed for quality
  • 5mm allen key insert for easy installation
  • Available in 75 and 90mm total length
  • OEM style black zinc finish
  • 10.9 grade high strength steel
  • Chamfered tip prevents cross-threading
  • Faster and easier wheel changes
  • Less wear and tear on your hubs
  • Eliminates the need for balancing the wheel while threading in stock wheel lugs
  • Made in Italy

🔧 Installation: Be sure hub threads are free of contaminants. It's recommended to place a drop of medium thread locker on the end of the stud to be installed in the hub. Screw stud into the hub by hand. Then use a 5mm Allen socket and torque to 15 ft-lbs (20Nm) of torque. Make sure the shank/stop of the stud bottoms against the hub. Place wheel on the studs. Then torque the lug nuts in a star pattern to 104 ft-lbs (140.00 Nm).

Vehicle Fitment

Toyota
• 2020+ Toyota GR Supra Mk5 B58 3.0L 6 cyl.
• 2020+ Toyota GR Supra Mk5 B48 2.0L 4 cyl.
