Keep Oil Out of your VW Air Intake System
It's no secret that the Mk7 turbo motors can suffer from oil control problems causing oil to blow through and coat the intercooler and charge piping, gunking up intake valves and the VANOS system, lowering the effective octane, and generally degrading engine performance. The higher your boost levels the more apparent these problems become.
The solution to this problem has finally arrived. The BMS oil catch can. While there are other catch cans on the market they all fall short in various areas. Some are mounted on the hot/turbo side of the motor preventing proper vapor condensation. Others utilize hoses that are too small and runs that are too long to allow proper PCV ventilation causing internal motor / ring sealing issues. Some have insufficient or no internal baffle system while others have internal baffles systems that are too restrictive. Some even bypass the PCV system all together venting crankcase gas and odor to atmosphere. Most are simply repackaged oil catch cans from smaller / lower power motors shoe horned in to place in the engine bay.

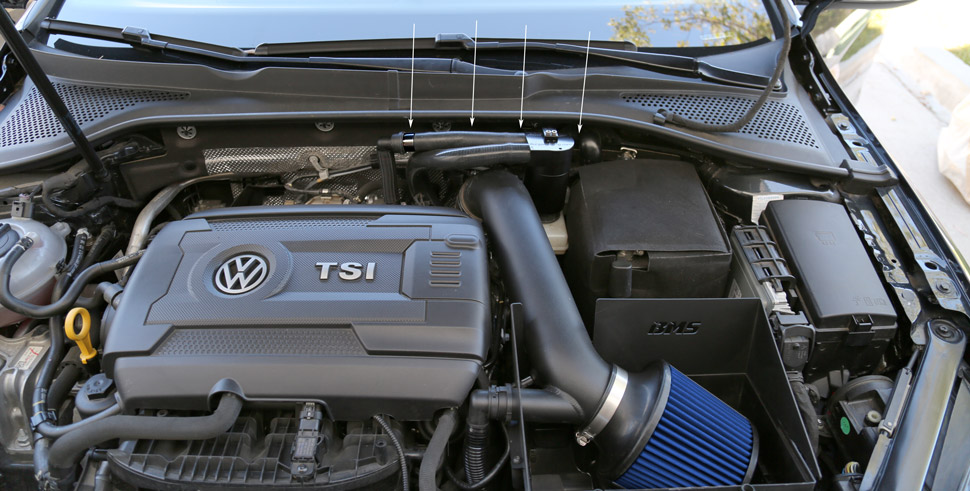

To solve these problems BMS designed their oil catch can kit from the ground up specifically for the the turbo VW application. It features 100% CNC machining with zero welding for a precision fit and long life. The can itself is guaranteed for the life of the vehicle. The hoses exceed the OEM PCV piping in diameter and that flow rate is maintained throughout the entire oil catch can ensuring no excessive crankcase pressure buildup. The BMS OCC retains the factory fully closed loop PCV operation preventing any PCV vapor from leaking to atmosphere. The mounting locations are selected to minimize the line length, allow more efficient operation, and retain a stealth look. Install takes around 20 minutes, includes all required hardware, and is 100% reversible. Simply unscrew the base of the can or use the drain plug to safely dispose of captured oil with the rest of your used motor oil during oil changes.
BMS Oil Catch Can = The Best Protection with No Restriction

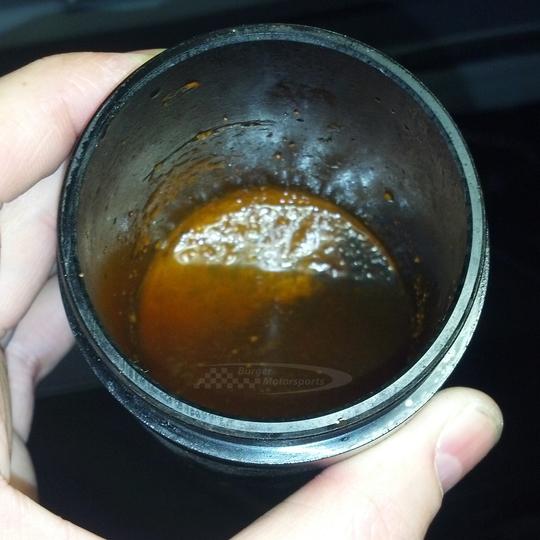

Left Untreated, Condition Only Gets Worse
Features & Benefits
• Increases Air Intake Efficiency
• Promotes Engine Longevity
• Non-Clogging Air/Oil Separation Triple Baffle
• Free Flow Solid No Restriction Design
• Retains factory fully closed loop PCV operation
• Large Intake / Exhaust No Tapering Down
• Anodized Black Lightweight Aluminum
• Simply unscrew base every 3-6 months to empty
• Non-Clogging, No Service Needed Air/Oil Separation Double Baffle
• High flow to eliminate crankcase pressure caused by more restrictive designs
• Precision Machined from Solid Blocks of High Grade Aluminum
• Comes with brackets and hoses needed for the install
• Large 16mm+ inlet and outlet exceeds OEM PCV sizing
• Made in USA & Guaranteed for Life
Vehicle Fitment
Audi
• 2013-2020 Audi A3 1.8TFSI / 2.0TFSI 8V
• 2013-2020 Audi S3 2.0TFSI 8V
• 2015-2023 Audi TT 2.0TFSI 8S
• 2015-2023 Audi TTS 2.0TFSI 8S
Volkswagen
• 2013-2020 VW Golf 1.8TSI / 2.0TSI MK7 / MK7.5
• 2013-2020 VW GTI 2.0TSI MK7 / MK7.5
• 2015-2020 VW Golf Alltrack MK7 / MK7.5
Skoda
• 2015-2023 Skoda Superb 1.8TSI / 2.0TSI 3V MQB
• 2013-2020 Skoda Octavia 1.8TSI / 2.0TSI 5E MQB
SEAT / CUPRA
• 2014-2020 SEAT Leon Cupra 2.0TSI 5F MQB
• 2016-2017 SEAT Ibiza Cupra 1.8TSI
Important fitment note: Fits compatible VW Group EA888 Gen 3 / MQB-style 1.8T and 2.0T turbo applications. Not intended for diesel engines or non-turbo engines.
Catch can dimensions and specs
Can dimensions with lid: 4.4" (111mm) Tall
Can diameter: 2.5" (63.7mm)
Lid length: Back to nozzle end: 4" (101mm)
Nozzle outer diameter: .75" (19.2mm)
Nozzle inner diameter: 0.669" (17mm)
Can Fluid Capacity: Up to 5.5 fl oz (162.6 mL)
