OBDII CAN Module for F Chassis

  • $ 279.00
  • Save $ 20
Shipping calculated at checkout.

SKU: CAN Module

Gives you instant control over your tailpipe exhaust flapper valve!

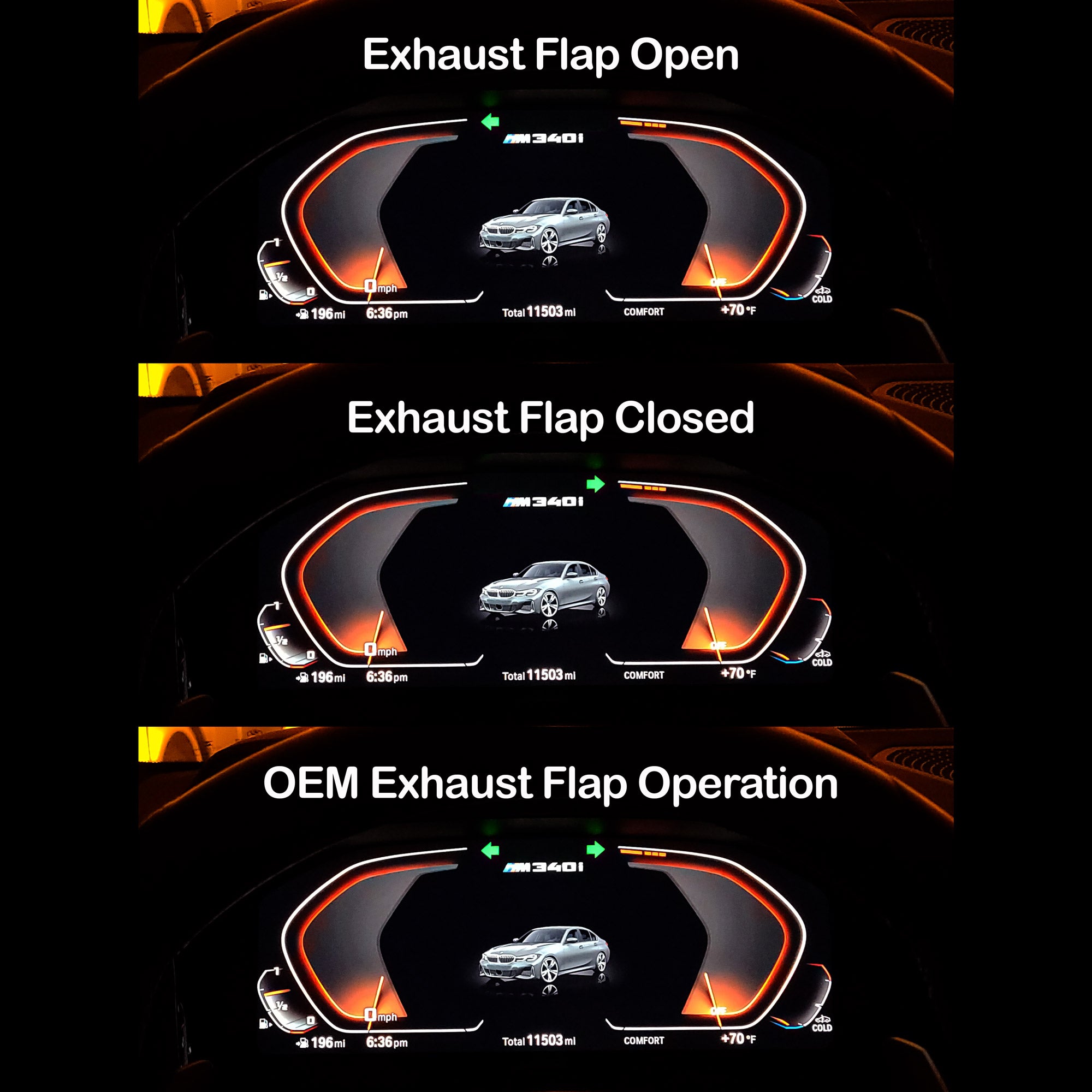

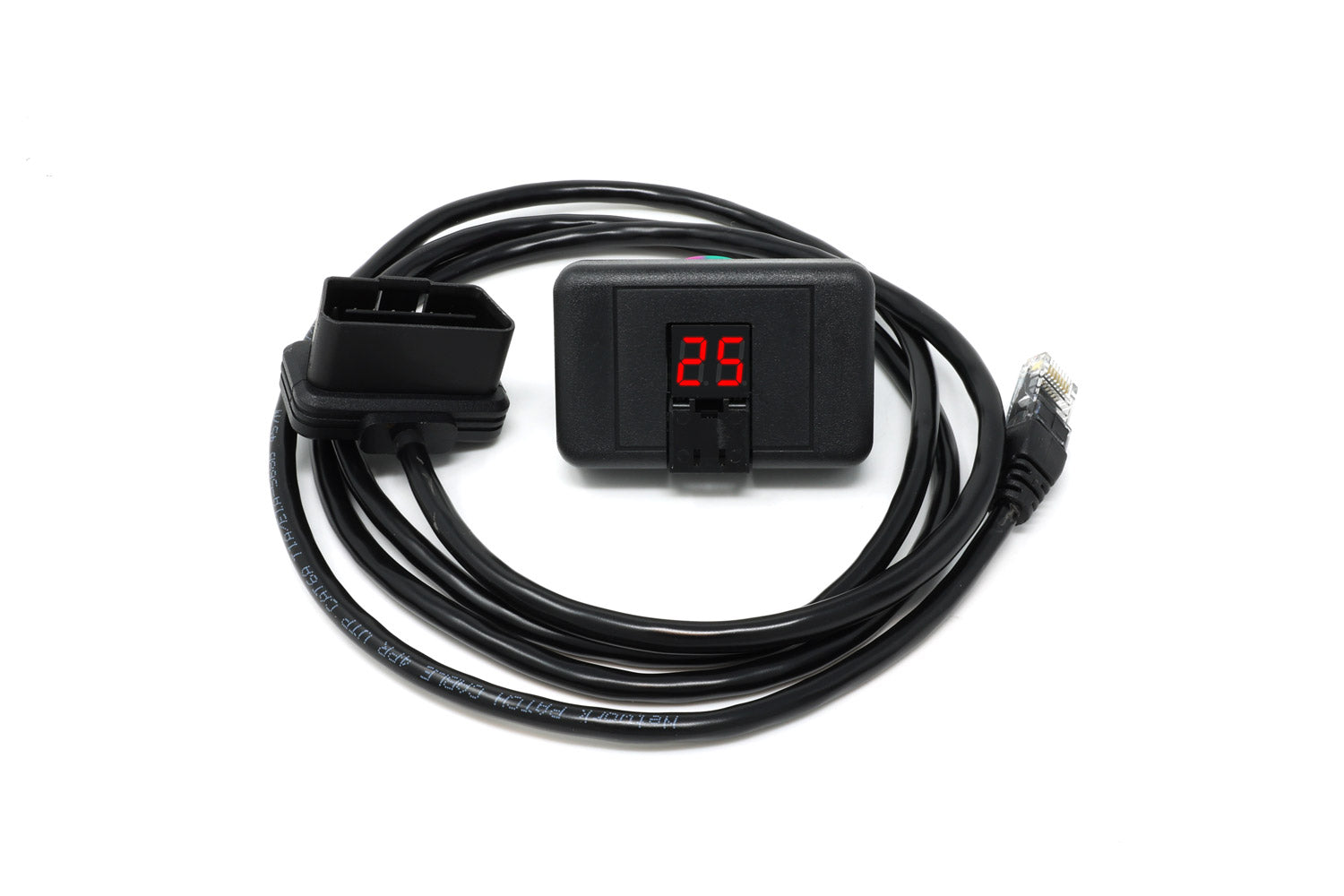

2012+ F Chassis BMW Models are equipped with an electronic valve in the tailpipe that helps control the exhaust sound according to a profile programmed from the factory. This handy plug and play module lets you take control of your flapper valve right from the driver's seat. Go from sounding 100% stock to an exotic exhaust system for a fraction of the cost with just one click of a button. Our seamless integration using the CANbus eliminates the need to install/tap wires, carry around external remotes, or physically unplug exhaust components. Just plug the module into your OBDII port, tuck it under the carpet, and press the turn signal button to toggle between flap always open, flap always closed, and OEM operation. Installation and removal takes only seconds and it won't interfere with aftermarket tuning systems.

In addition to controlling your factory exhaust valve, this handy module includes many other useful features. For //M models there is an active sound MUTE option to turn off the engine noise pumped through your stereo system. For those with LED headlights, there is an LED HALO max brightness mode to brighten your angel eyes at night. In addition, there is an optional in-dash boost gauge allowing you to read your boost levels when racing. All of these features including the exhaust valve control can be independently enabled or disabled right from the driver's seat! We expect to add many more features to the device via free firmware updates that are loaded at home via a BMS DATA cable.

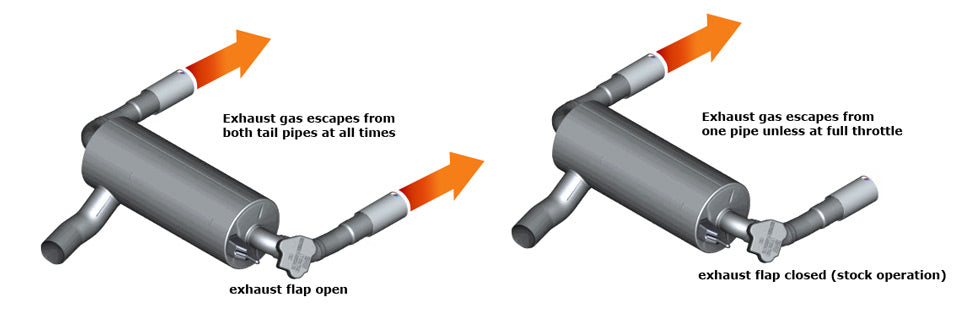

On M vehicles there are two of the above exhaust flaps, one on each side. These will both open and close simultaneously on M vehicles.

CAN FLAP CONTROLLER FOR BMW

APPLICATIONS

BMW 1 Series
• 2013+ BMW F20 F21 M135i/M135iX

BMW 2 Series
• 2014+ BMW F22/F23 228i/228iX M235i/M235iX F87 M2

BMW 3 Series
• 2012-2018 BMW F30 F31 F34 328i/328iX 330i/330iX 335i/335iX 340i/335iX

BMW 4 Series
• 2014+ F32 F33 F36 428i/428iX 430i/430iX 435i/435iX 440i/440iX

BMW M Models
• 2015-2019 F80 M3 All models
• 2015+ F82 M4 all models


BMW X Models
• 2014-2018 F15 X5
• 2015+ F16 X6

VIDEO



INSTALL GUIDE
