N54 Phoenix Racing BMW Front Facing Port Injection Manifold
The highest flowing N54 intake manifold available!

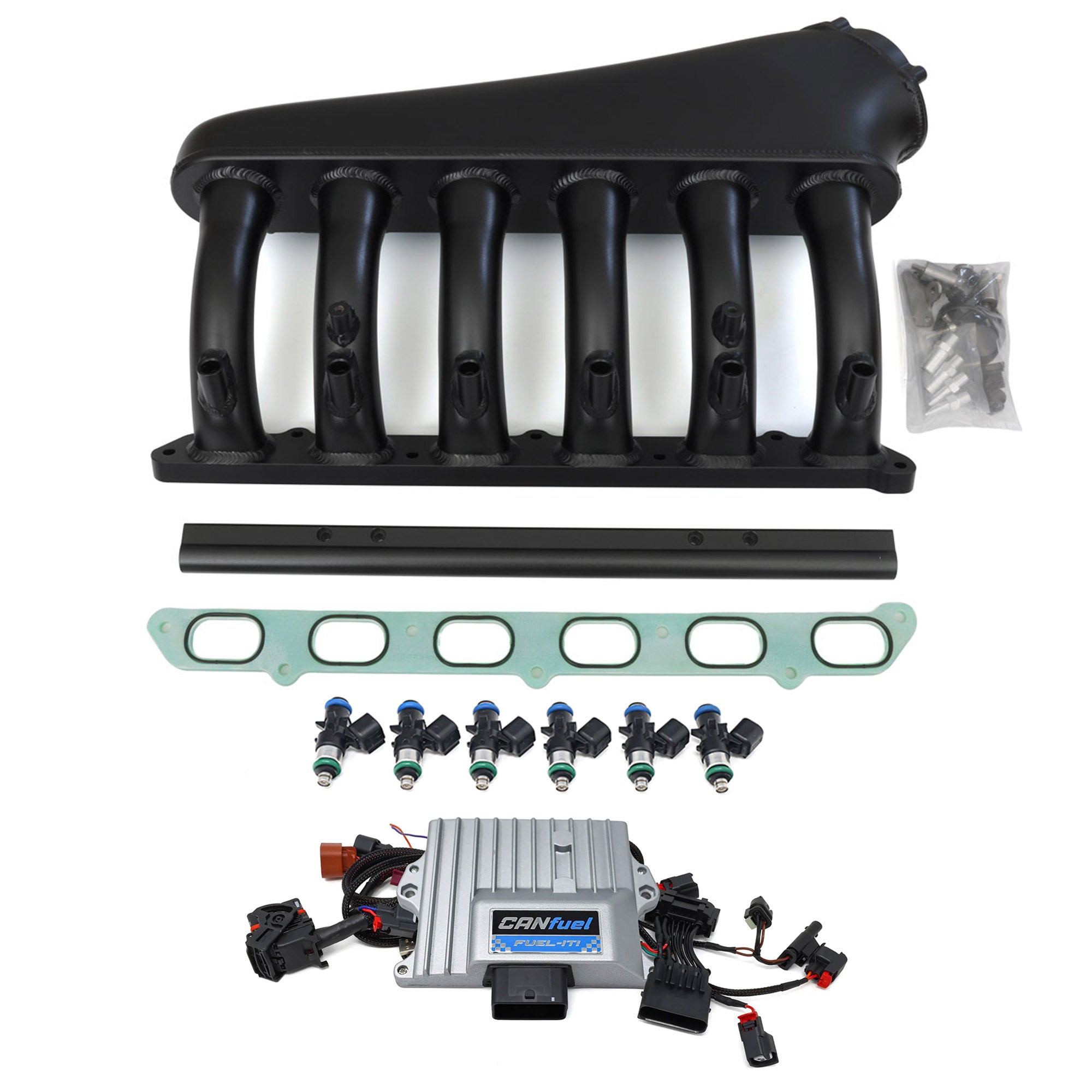

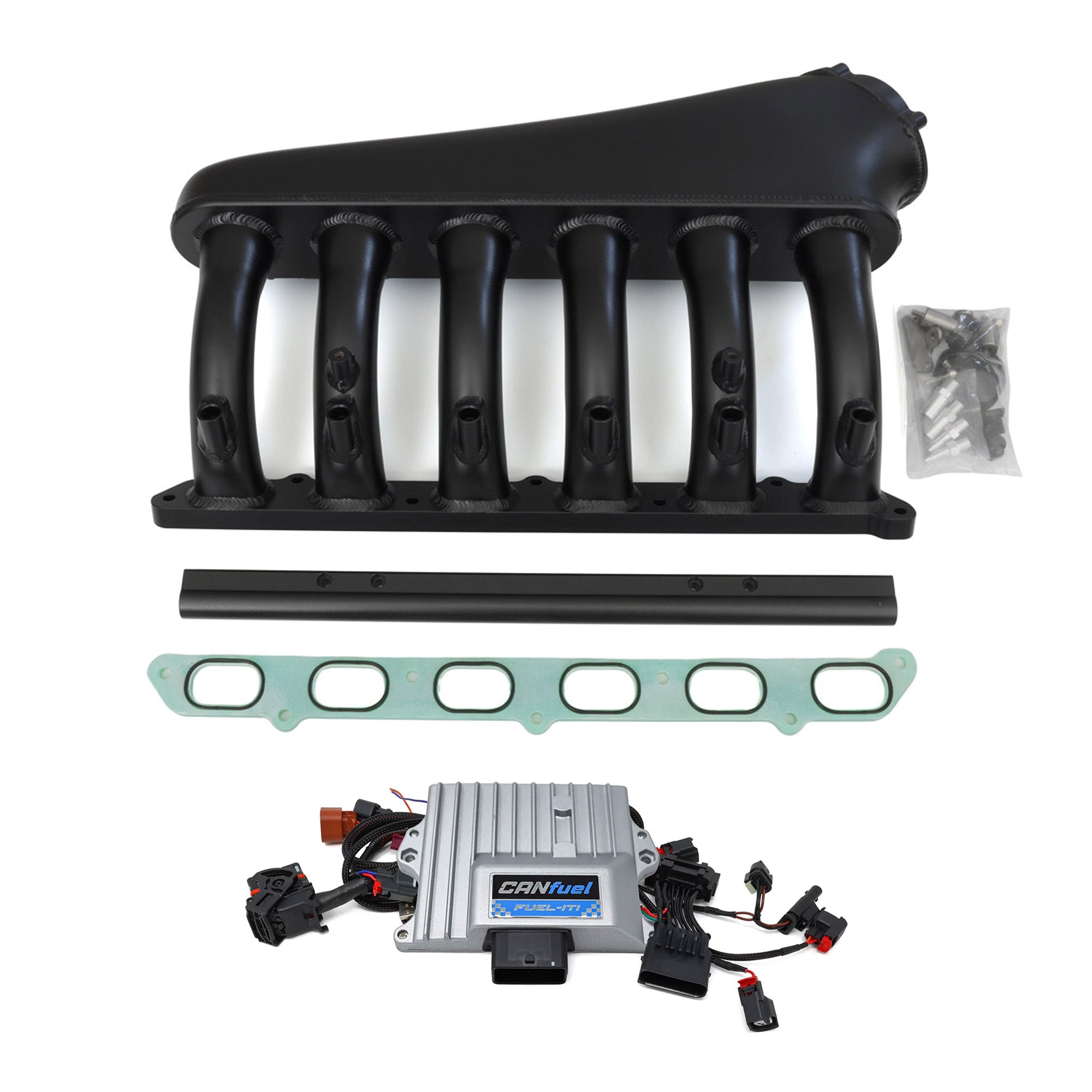

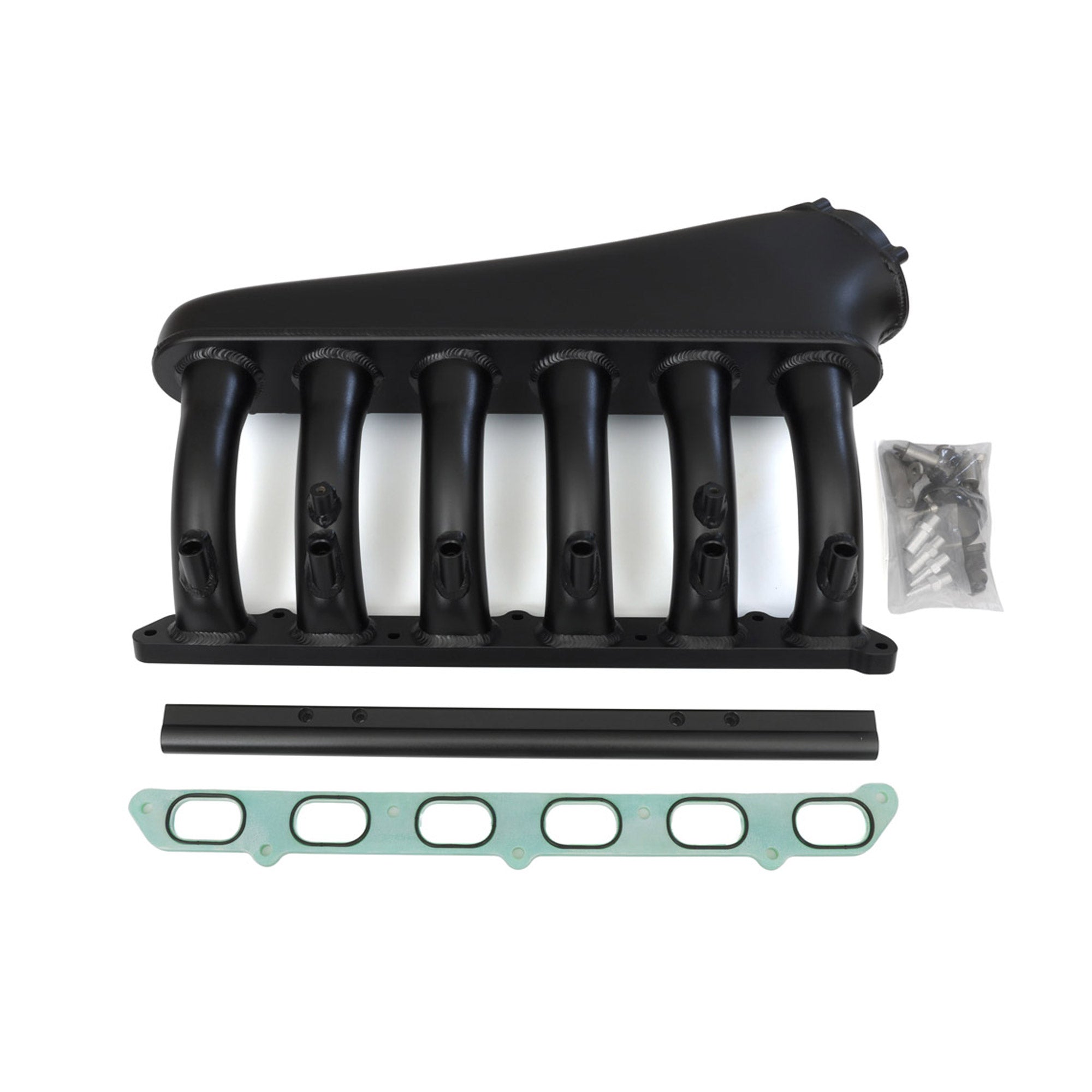

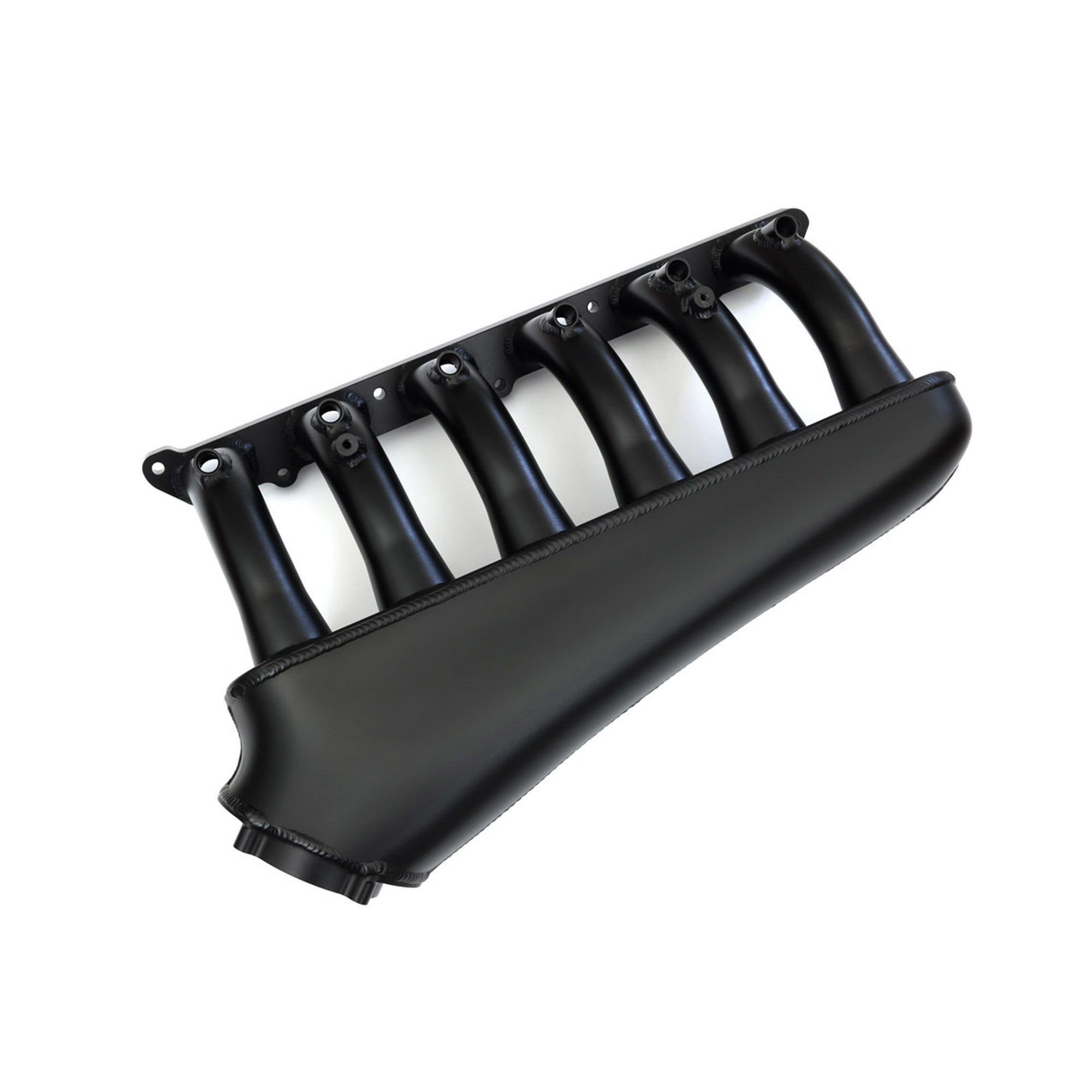

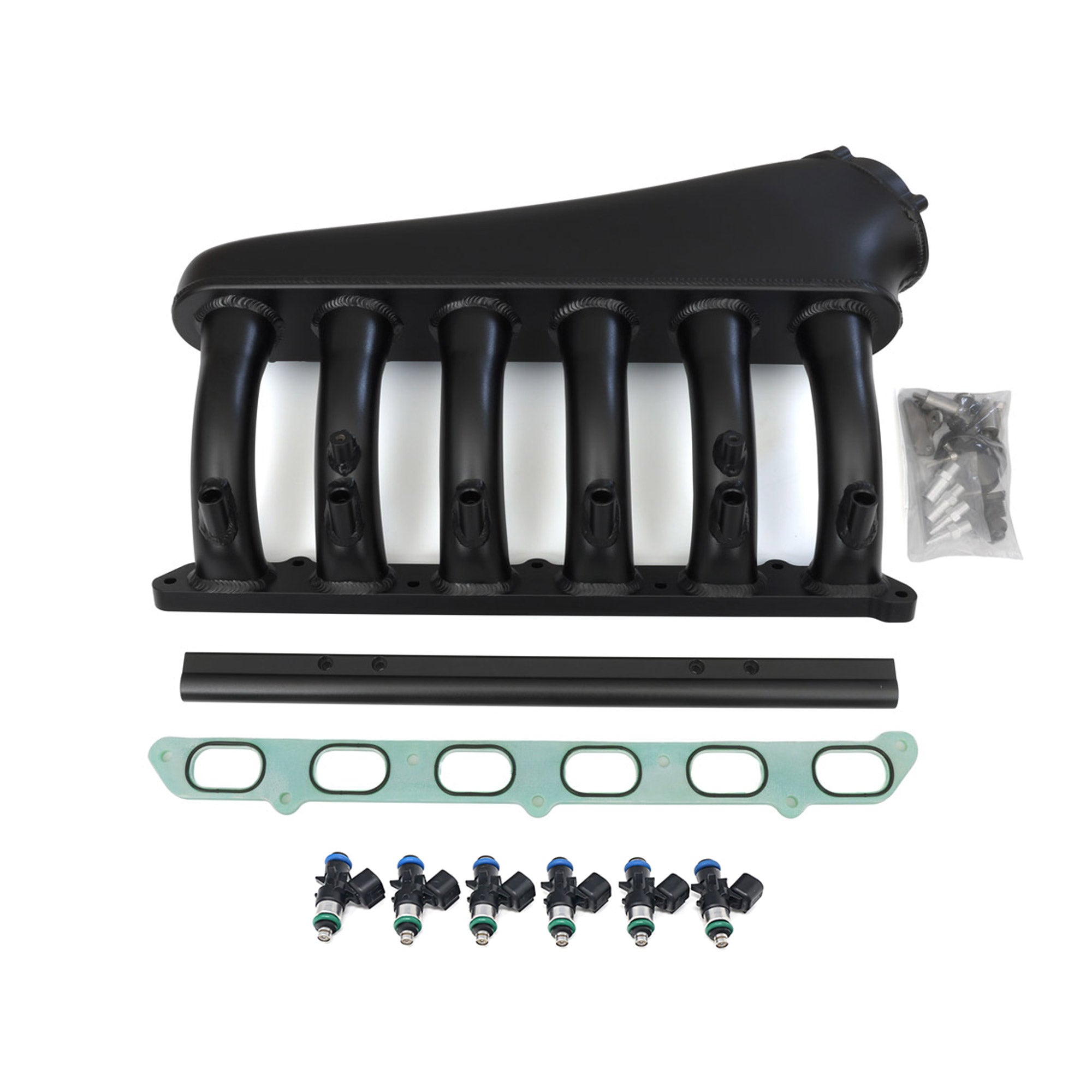

Replaces your weak factory plastic N54 intake manifold with a direct fit high flow high strength aluminum front facing racing manifold. Features port injection bungs located on the top of the manifold for easy access and optimal injector spray pattern, expansion vacuum ports perfect for larger diameter blow-off valve references, additional gauges, Hobb's switches, and any other expansion you can imagine. Includes high-quality o-rings and all required hardware. Available with required port injection hardware (calibrated injectors, plug and play fuel line), or by itself without the extra fueling hardware.
Note normal chargepipes will not fit this manifold. Requires a custom chargepipe or one designed for forward facing manifolds. May require extending some factory electrical connections for fitment.
Features & Benefits
• Increased flow
• Integrated top mount port injection bungs
• Much stronger than stock
• Lightweight aluminum construction
• All factory connections
• Extra ports for a BOV, Hobb's switch, or boost gauge
• Includes upgraded high-temperature o-rings
N54 Vehicle Fitment
BMW 1 Series
- 2008-2010 N54 E82 BMW 135i Coupe
- 2008-2010 N54 E88 BMW 135i Convertible
- 2011 E82 N54 BMW 1M
BMW 3 Series
- 2006-2010 N54 E90 BMW 335i Sedan including xDrive
- 2006-2010 N54E91 BMW 335i Touring including xDrive
- 2006-2010 N54 E92 BMW 335i Coupe including xDrive
- 2007-2010 N54 E93 BMW 335i Convertible
- 2011-2013 N54 E92 BMW 335is
High quality Bosch EV14 or IDX 42mm fuel injectors come packaged in flow matched sets of six and are compatible with the Fuel-It!, Phoenix Racing, and other port injection kits.
IDX 1050cc: Up to 1100whp
Bosch® EV14
OPTIONAL: Fuel-It! CANfuel Sequential Port Fuel Injection Controller
Save $100.00 When purchased with this manifold.
Fuel-It! CANfuel allows your ECU to control up to 8 fuel injectors sequentially in addition to an ethanol content sensor, low fuel pressure sensor, extra pressure sensors, EGT probes, external fuel pumps, and much more. All using the same CANbus technology your ECU already uses to communicate with factory control modules!
Click here for more information on the Fuel-It! CANfuel Sequential
Port Fuel Injection Controller or to purchase separately.
This kit includes a FREE ($99.00 Value) Burger Motorsports N54 Phenolic Thermal Intake Manifold Spacer which is required for proper BMS manifold installation.
The Burger Motorsports N54 Phenolic Thermal Intake Manifold Spacer is constructed from fiber-embedded phenolic material and helps to prevent heat transfer from the cylinder head to the intake manifold, thereby increasing engine efficiency and decreasing heat soak. This advanced technology will lower intake air temperature, allowing denser air to enter the cylinders, thus reducing detonation and promoting more efficient combustion.
BMS Port injector plugs available here.
These dummy injectors fit in place of actual port injection injectors to block the holes. Allows use to aluminum manifolds with port injection bungs without actually having port injection.
