Racing Wheel Stud Conversion Kit for BMW
Easily convert your BMW to Italian made high quality racing wheel studs. Perfect for street, track, or race applications!

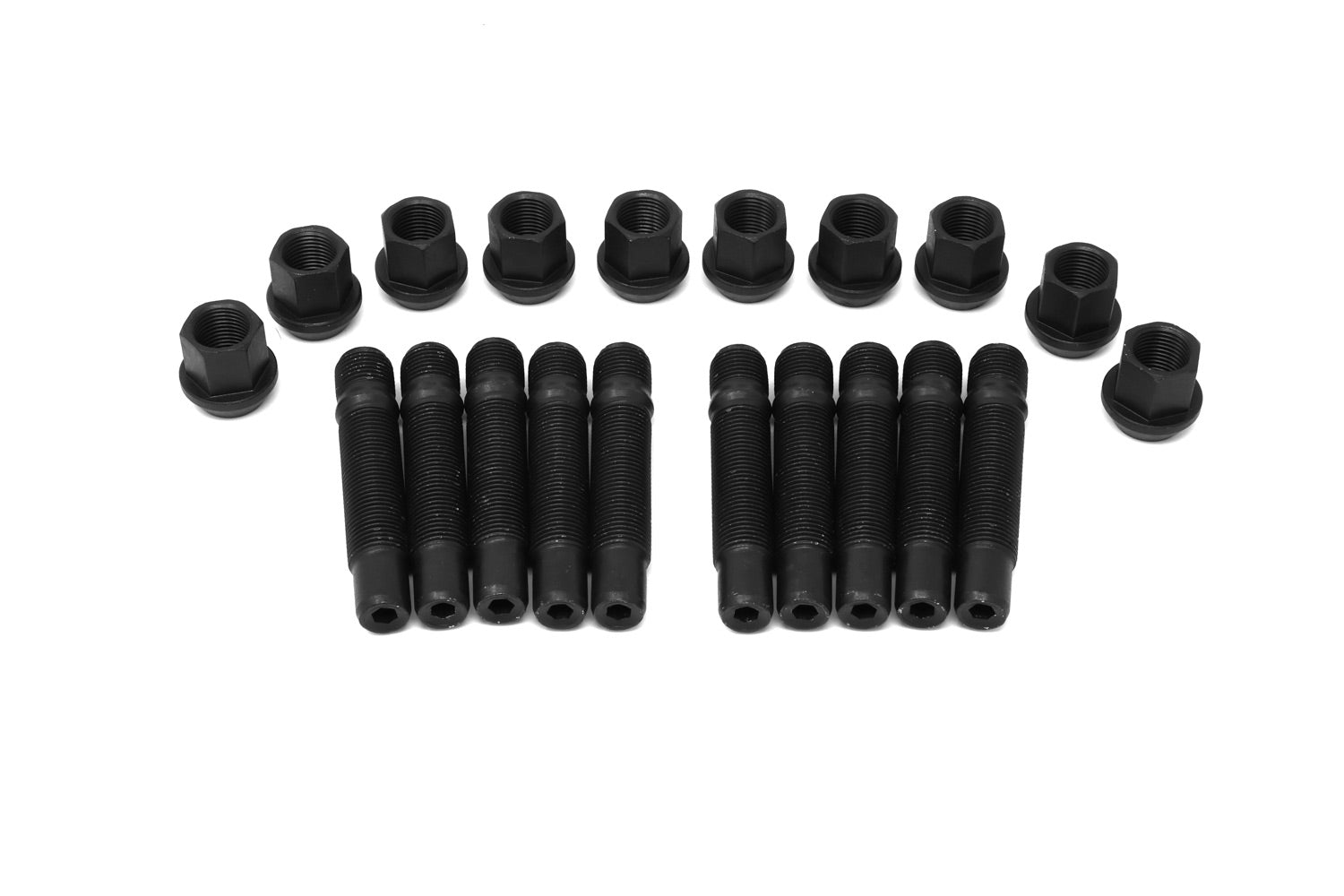

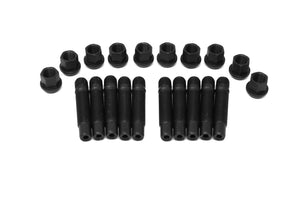

This kit contains (10) wheel studs and (10) 17mm lug bolts and will convert 2 wheels.
Available in two thread patterns
Please email us if unsure of your thread size.
- M14 x 1.25: Most F and G Chassis BMW
- M12 x 1.5: Most E Chassis BMW

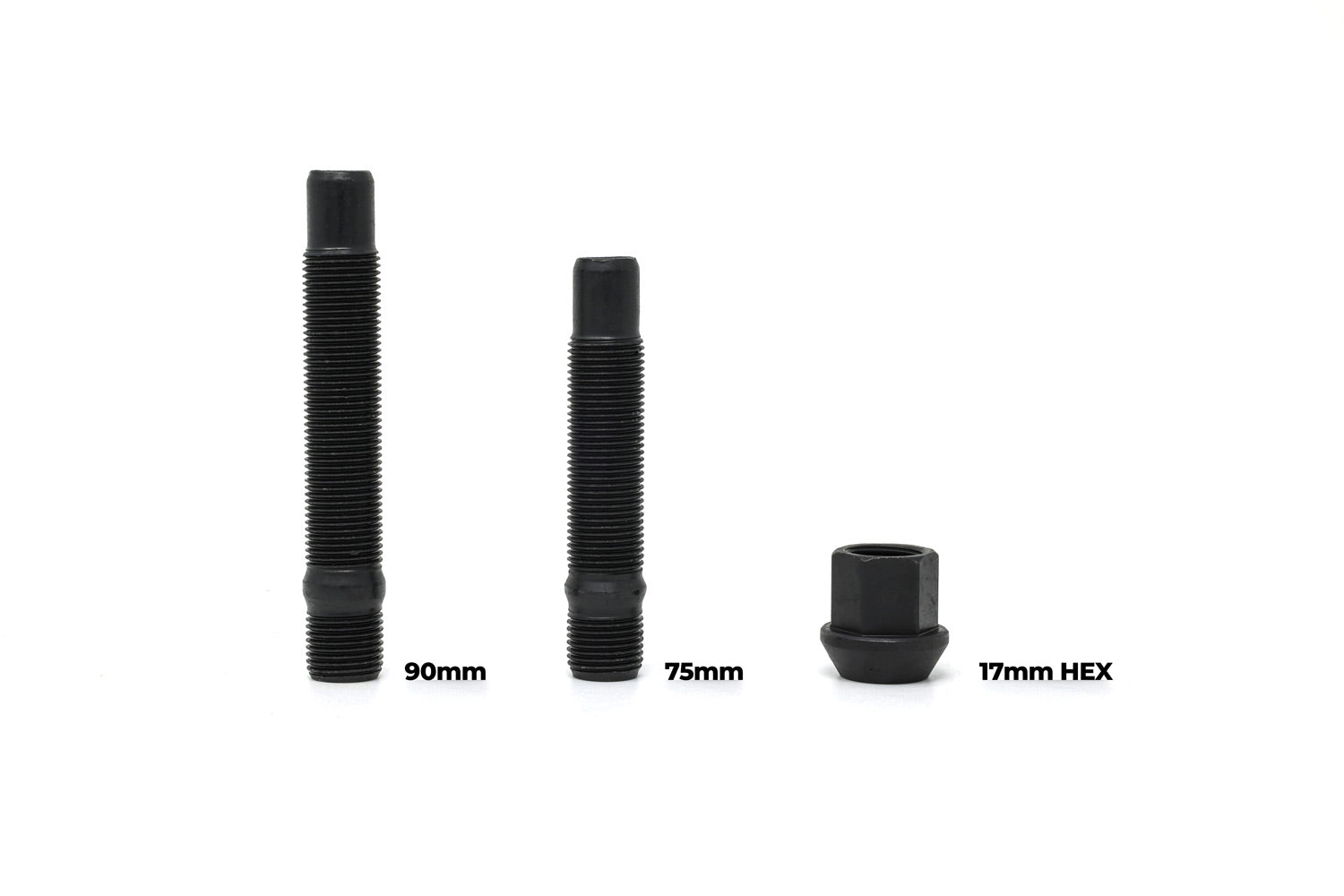

Available wheel stud lengths (Can be used with or without spacers)
- 75mm total length (60mm shank length): Allows for wheel spacer thicknesses up to 12mm
- 90mm total length (75mm shank length): Allows for wheel spacer thicknesses up to 20mm
Wheel Stud Features & Benefits
- Each kit comes complete with (10) Wheel Studs & (10) Lug Nuts
- Each wheel stud is x-rayed for quality
- 5mm allen key insert for easy installation
- Available in 75 and 90mm total length
- OEM style black zinc finish
- 10.9 grade high strength steel
- Chamfered tip prevents cross-threading
- Faster and easier wheel changes
- Less wear and tear on your hubs
- Eliminates the need for balancing the wheel while threading in stock wheel lugs
- Made in Italy
🔧 Installation: Be sure hub threads are free of contaminants. It's recommended to place a drop of medium thread locker on the end of the stud to be installed in the hub. Screw stud into the hub by hand. Then use a 5mm Allen socket and torque to 11 ft-lbs (15Nm) of torque. Make sure the shank/stop of the stud bottoms against the hub. Place wheel on the studs. Then torque the lug nuts in a star pattern to 105 ft-lbs.
