BMS Universal CANflex CANbus E85 Analyzer (ECA) BETA

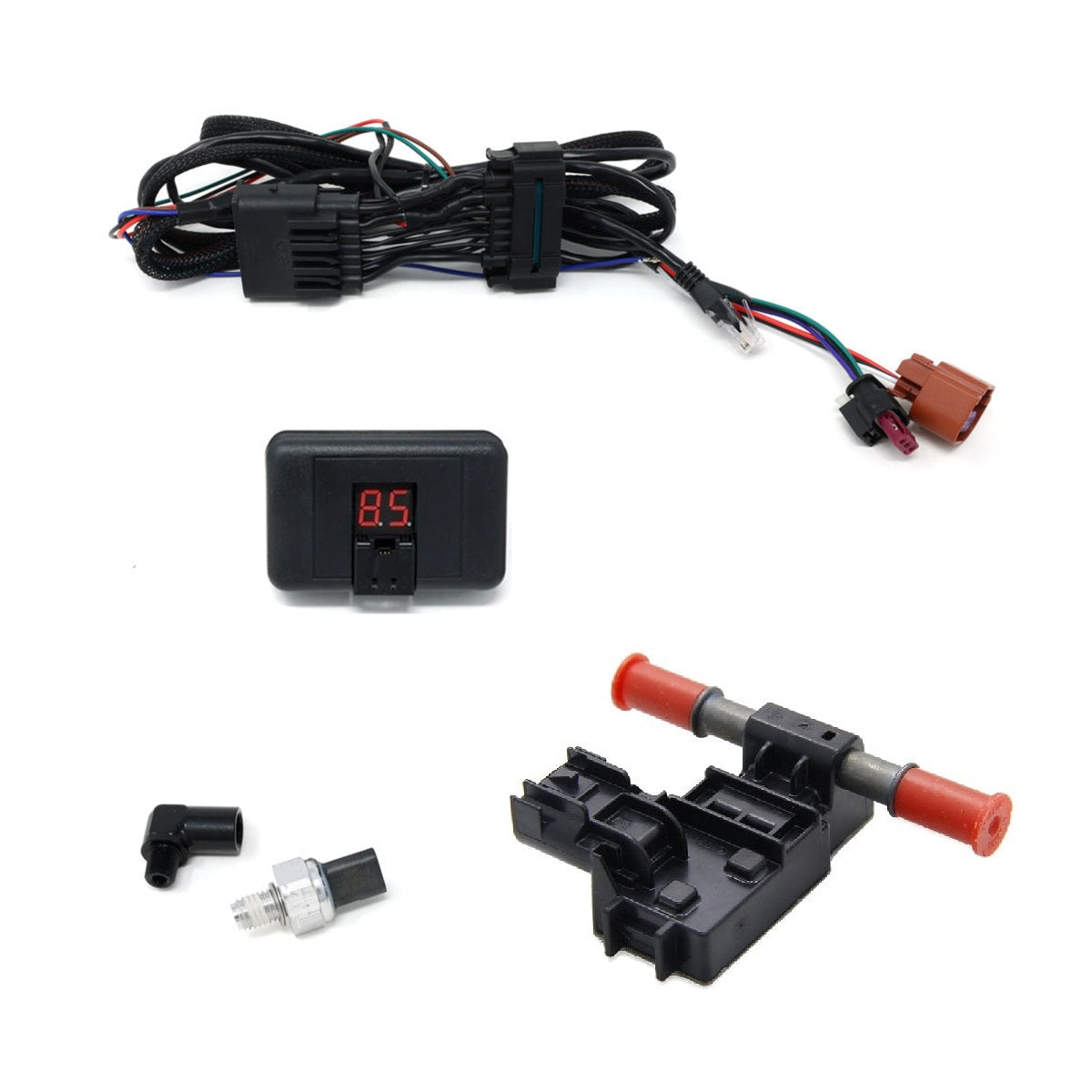

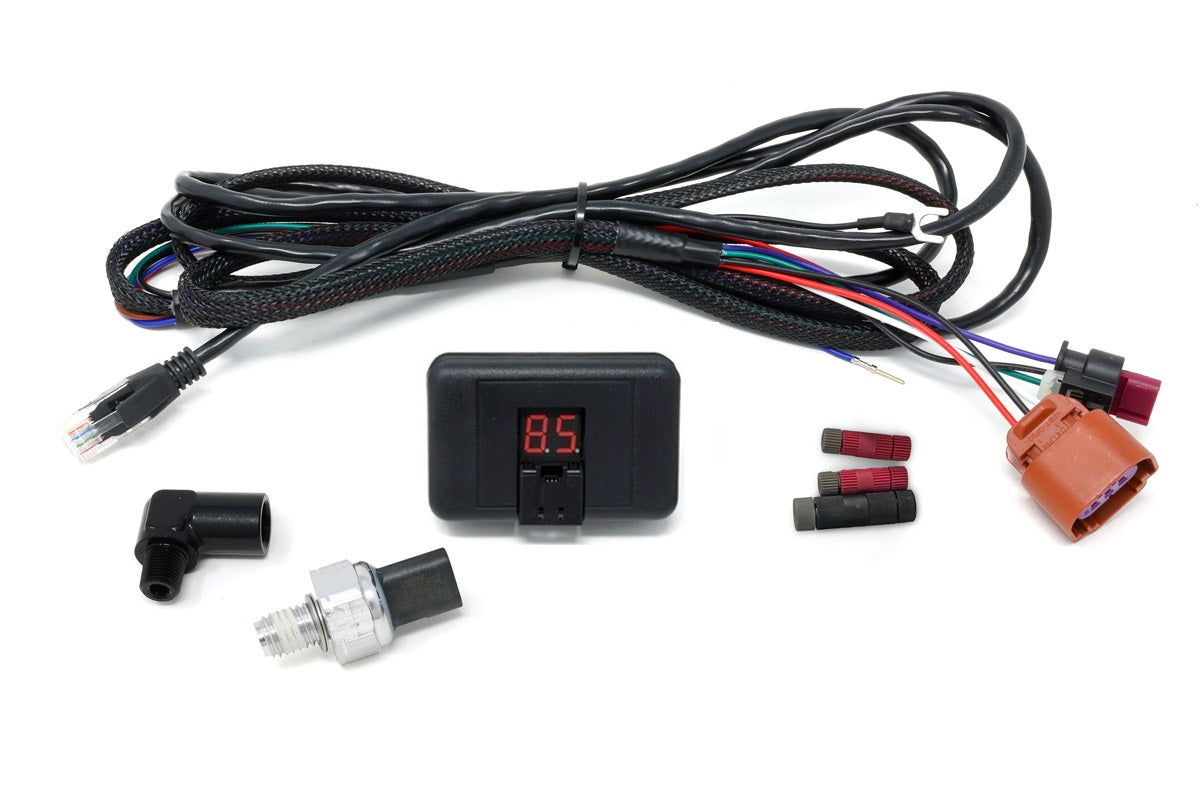

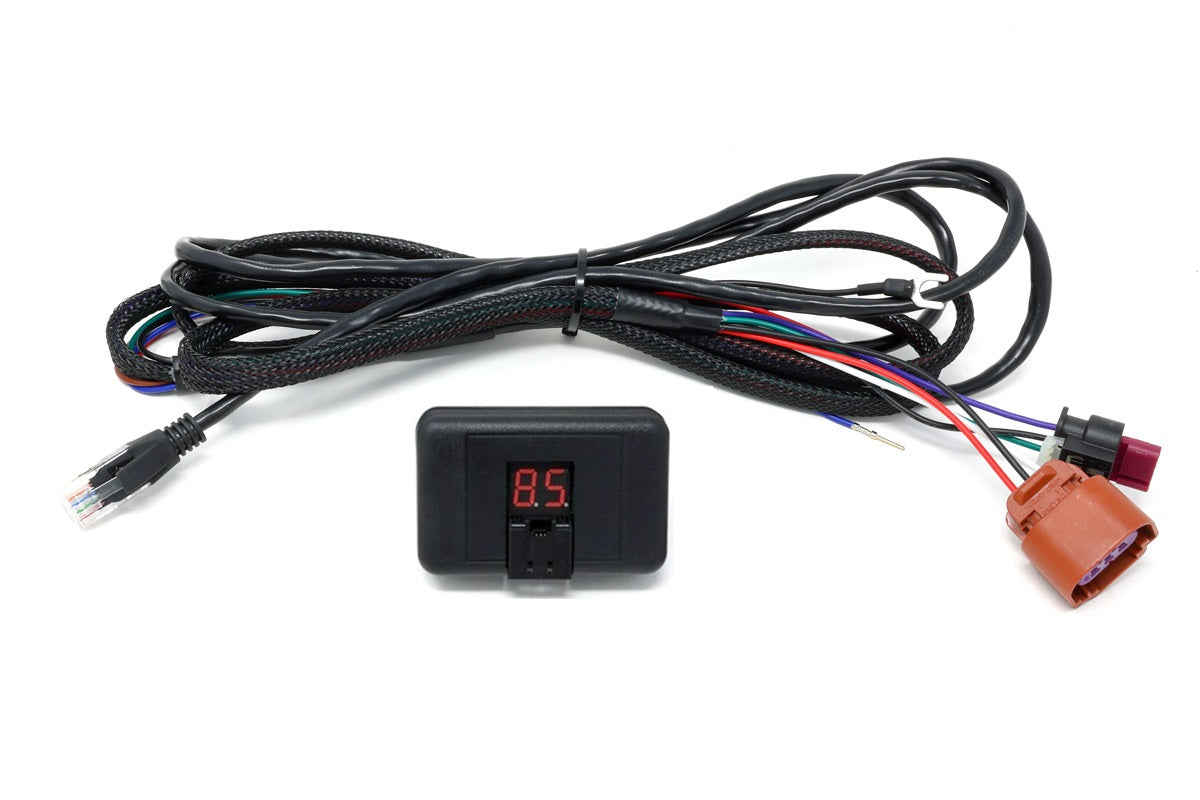

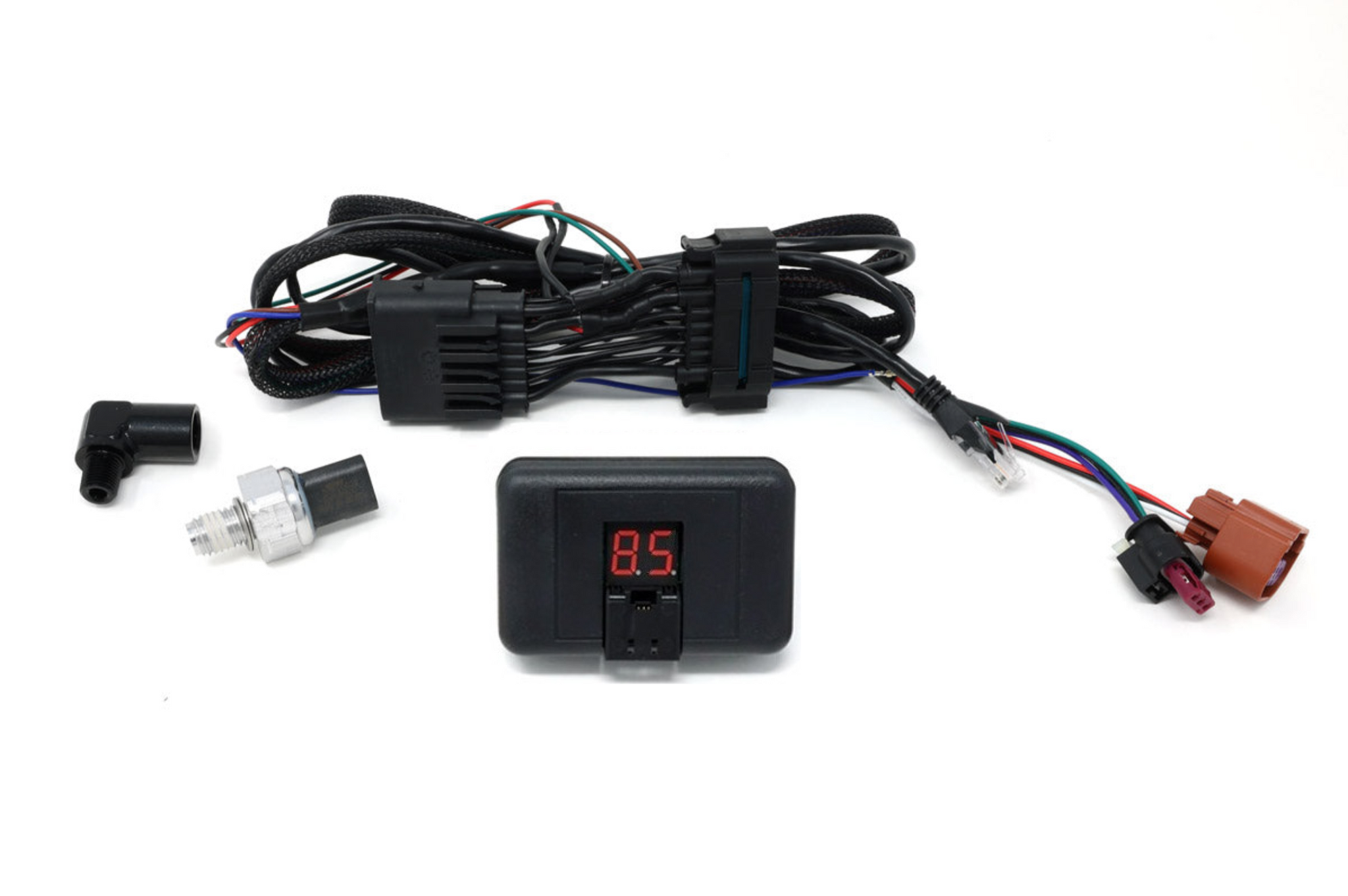

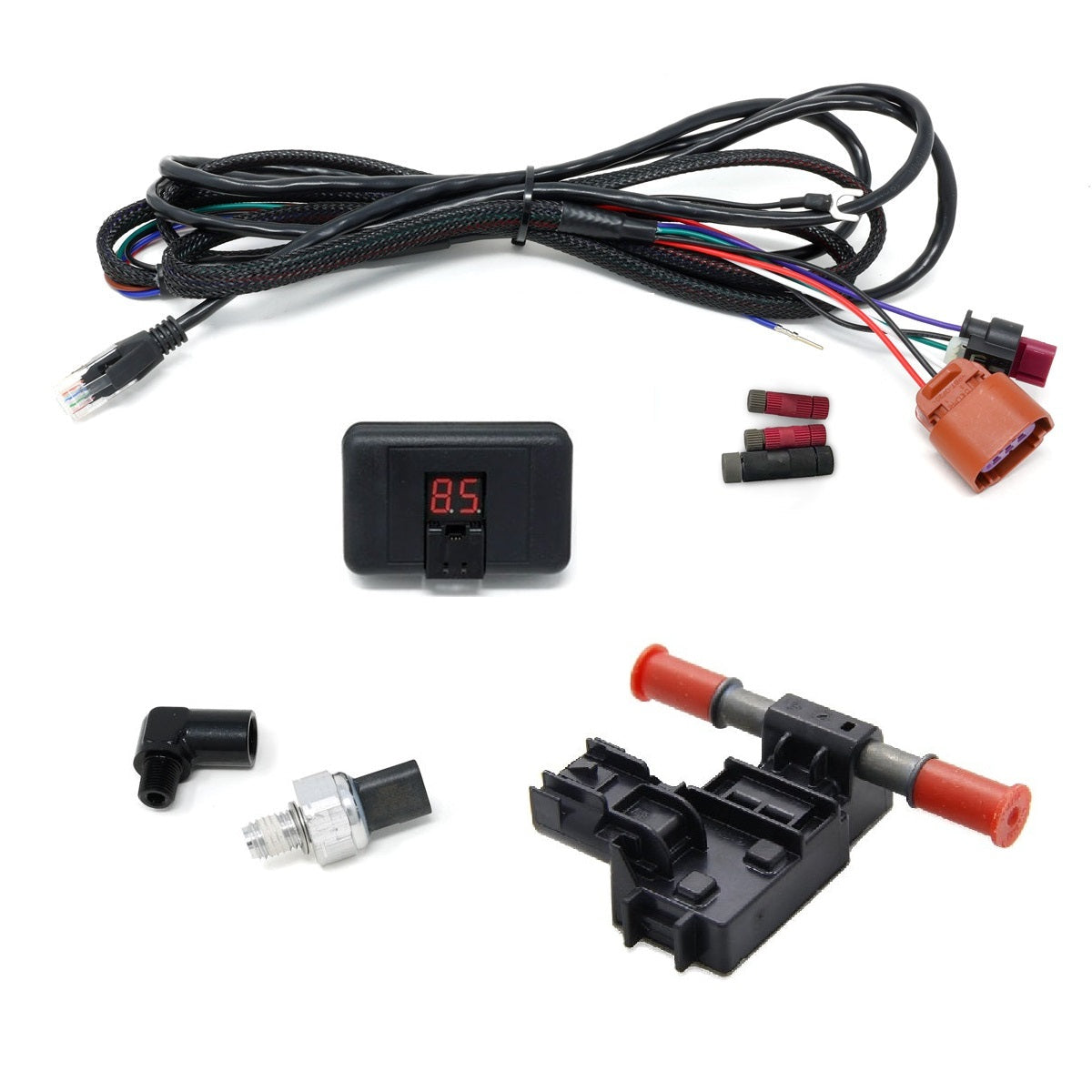

This universal E85 analyzer plugs directly into your Flex Fuel sensor (sensor kit sold separately) and outputs your ethanol reading on CANbus address 0xEC allowing your flash only DME and/or JB4 to read the ethanol signal. In addition it includes a harness plug for an optional low fuel pressure sensor (available from Fuel-It!) adding this critical tuning information to platforms like the B58 that don't include a factory low fuel pressure sensor. Compatible with MHD, BM3, JB4, and any tuning system that uses standardized CANbus flex fuel addressing.

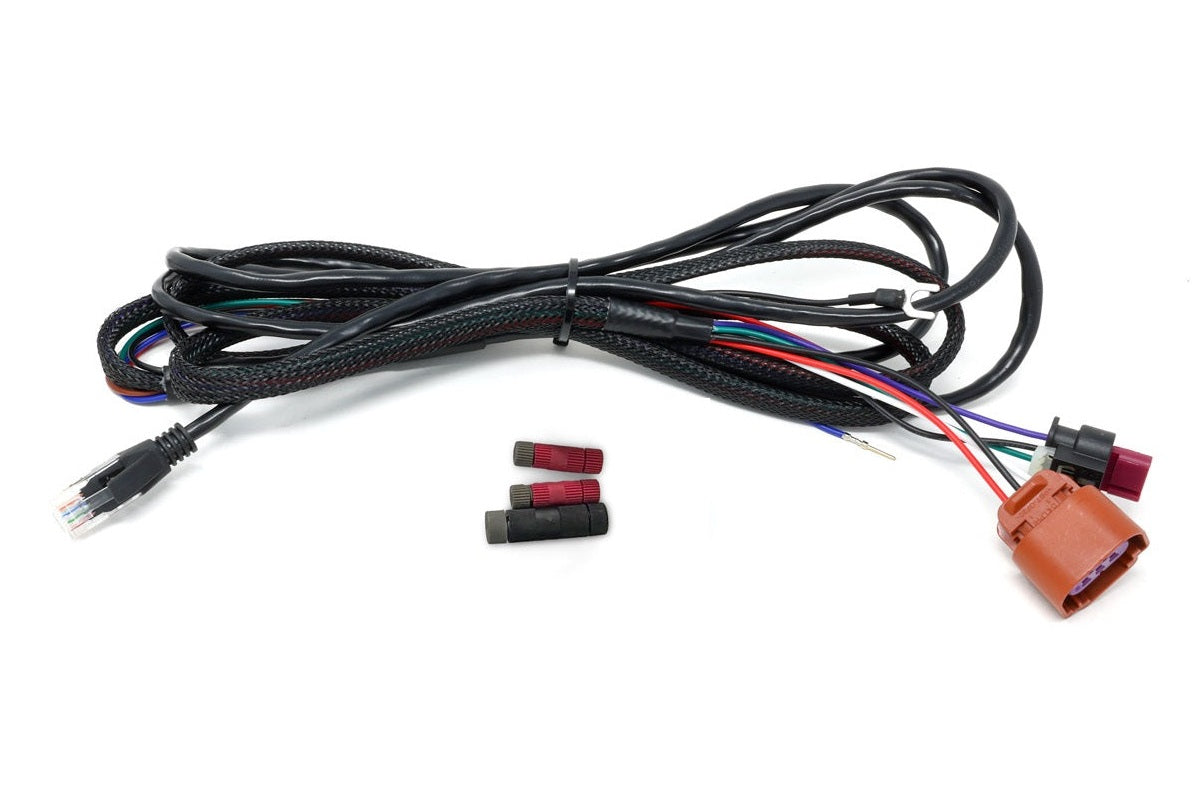

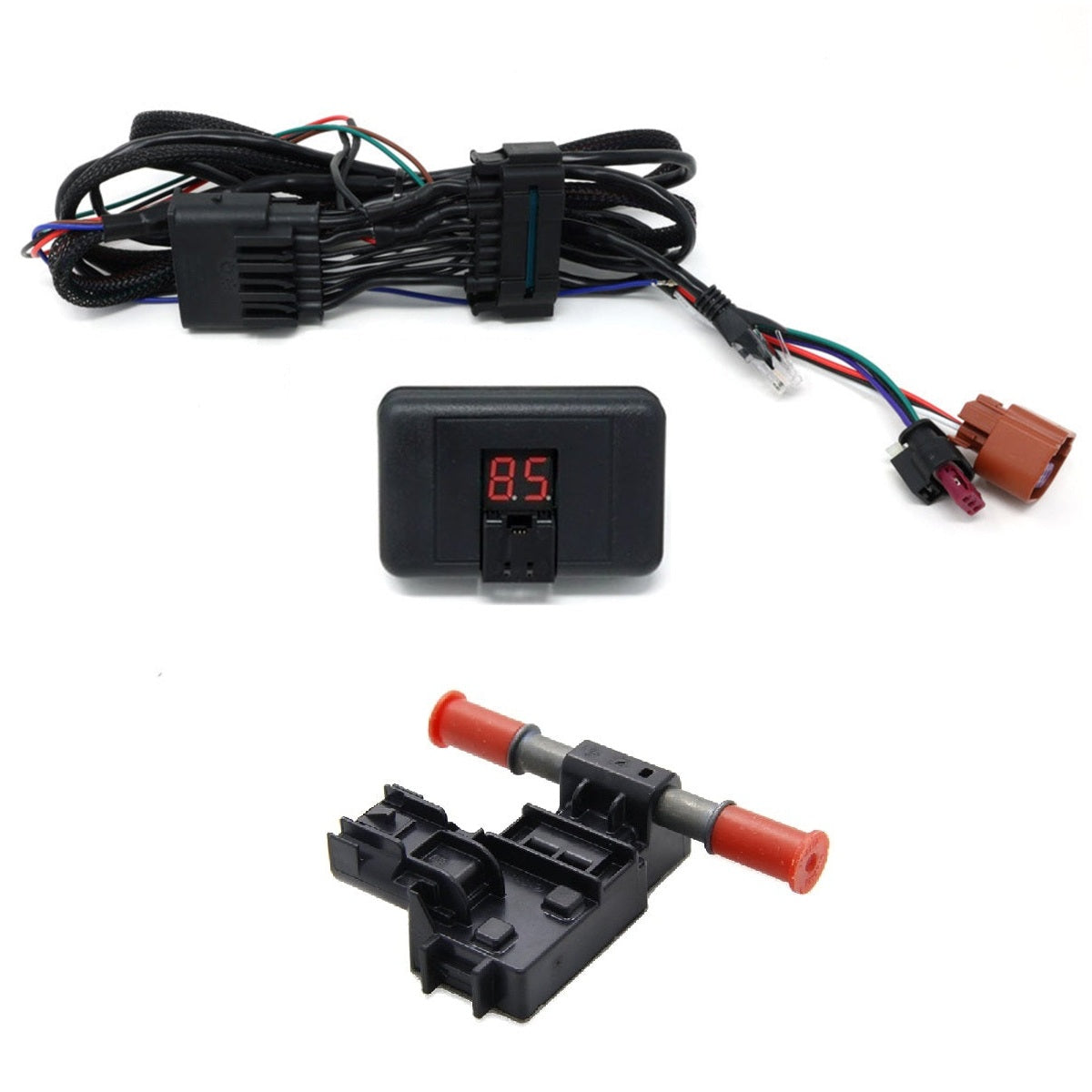

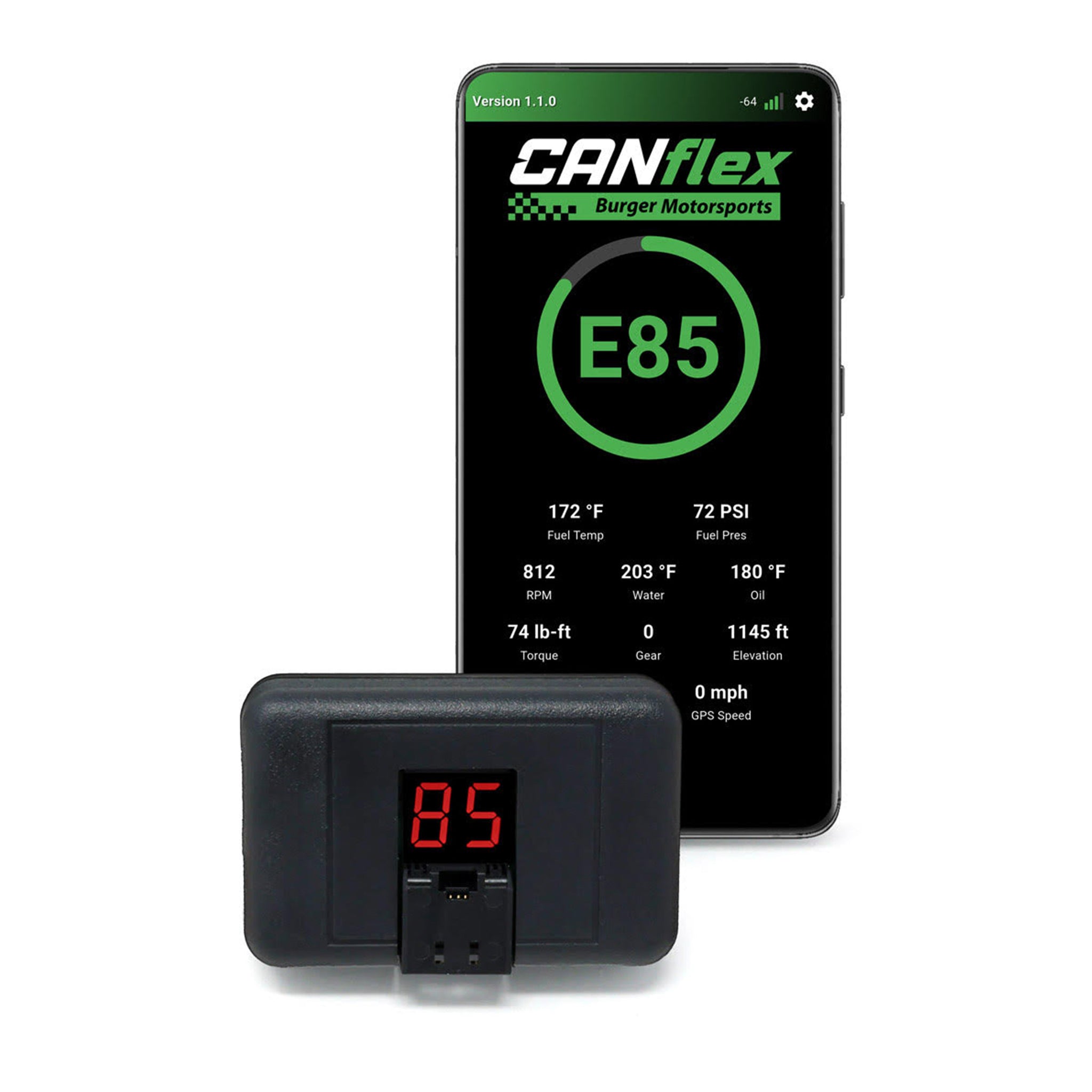

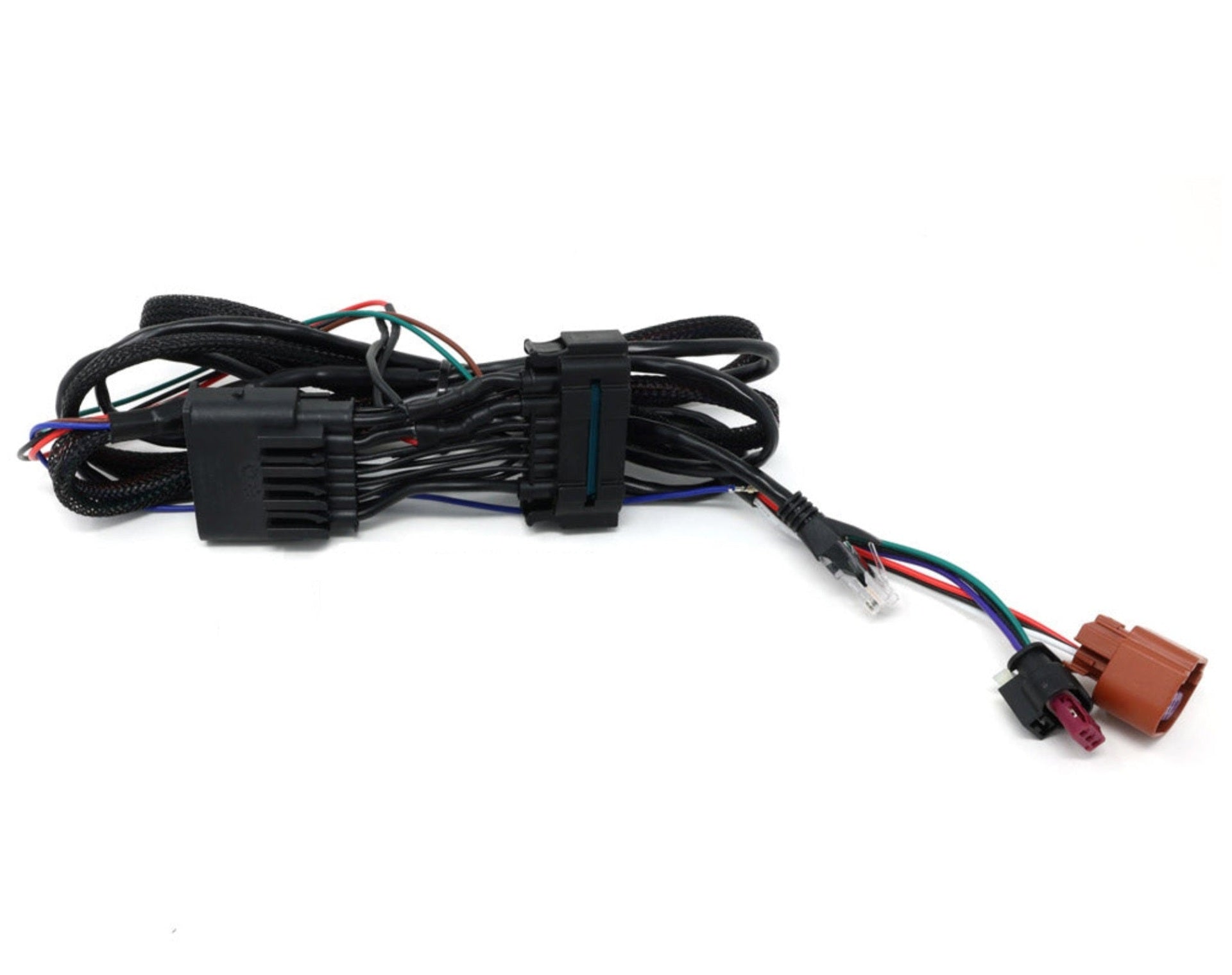

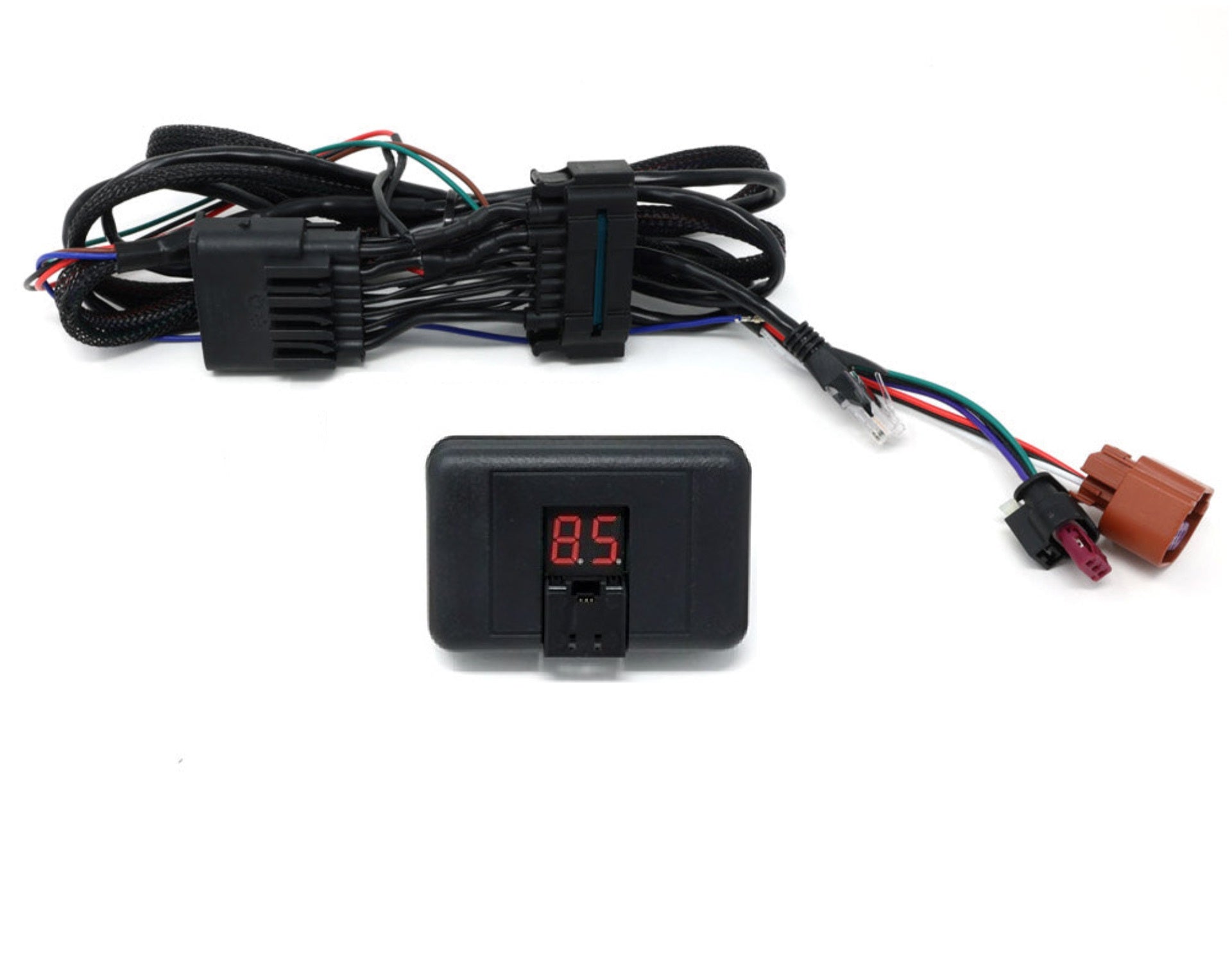

Compatible with both rear mount and front mount sensor kits. CANbus connections are attached using removable posi-taps based on mounting location. See wiring guide below. Can also be combined inline with the Fuel-IT BlueTooth ECA for those that require stand alone app functionality. To do this place the Fuel-IT BlueTooth ECA in frequency mode.
Wiring Guide:
Red/Green: 12v switched power via fuse tap or posi-tap
Black: Ground
Orange: CAN- (For front mount usually the factory yellow CANbus wire)
Red/Blue: CAN+ (For front mount usually the factory red CANbus wire)
Diagnostic LED:
Solid green: Unit has power/ground
Flashing green: Unit has power/ground and CANbus communication
Notes:
We can customize the transmit address, format, and transmit
speed. Contact us if you have a special request. We can also substitute CANflex into any flex fuel sensor kit we offer. Email sales for details.
