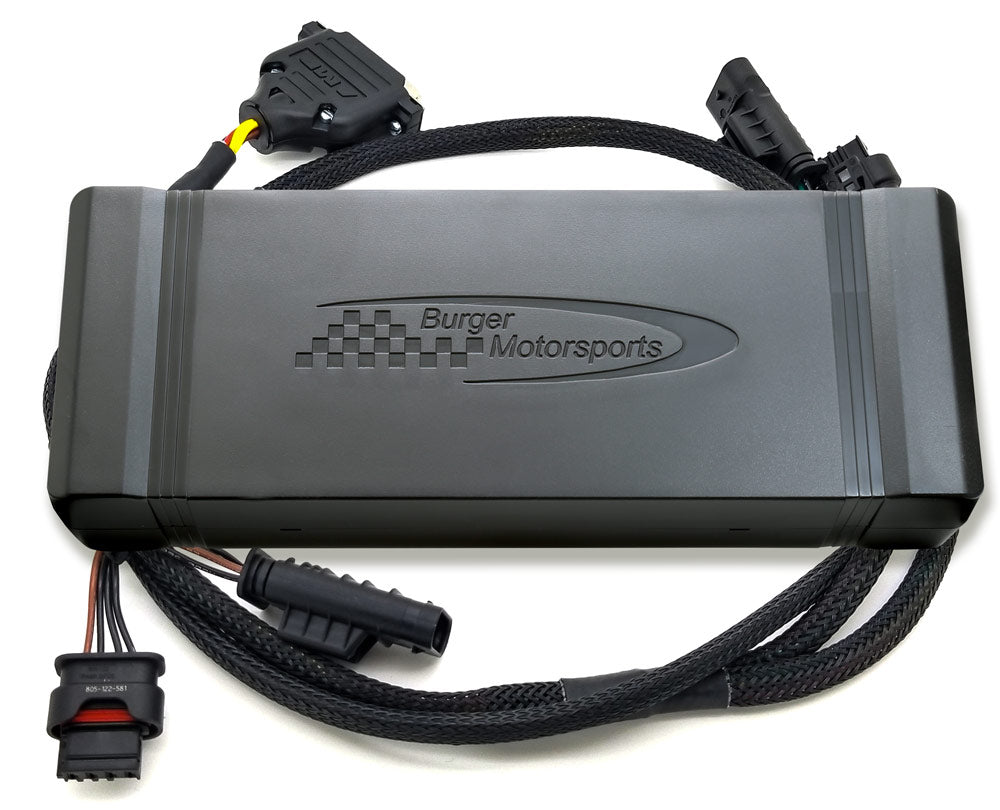

BMS Stage 1 BMW Performance Tuner
BMS Stage 1 BMW Performance Tuner
This plug and play BMW tuner attaches to two easy to access sensors in the engine bay and works with your factory DME tuning to remap your boost, timing, and fueling for optimal performance and reduced turbo lag. It features a 64mhz processor allowing sensors to be sampled 800 times per second using dedicated 10 bit digital to analog converters, ensuring smooth and powerful performance. The same box automatically detects whether you have an N20, N55, or S55 motor based on the TMAP sensor voltage and adjusts the tuning accordingly.Power gains on the N20 motor are up to 45 horsepower and 60 torque (35hp and 50tq at the wheels), on the N55 motor are up to 50 horsepower and 65 torque (40hp and 55tq to the wheels), and on the S55 motor up to 60 horsepower and 75 torque (50hp and 60tq to the wheels).
Installation is very discrete and it is quickly removed without a trace when needed. Fuel economy during normal driving is unchanged. Compatible with all driving modes.
Part F30-N55-STG1 is CARB Approved Under Executive Order (EO) No. D-744-1 for 2013 BMW 335i models only. All other applications are competition race use only and not legal for use within California.
Click Here for the BMW TMAP Sensor Location
N55 Stage 1 BMW Tuner Features & Benefits
• Power gains of up to 40whp and 50wtq on a factory vehicle
• Improves 0-60 times and 1/4 mile times
• Quick Plug & Play Installation
• Runs as smoothly as stock, this is how your vehicle should have
come from the factory
• Compatible with all driving modes
• Fuel economy unchanged during normal driving
Not VIN locked and can be removed without a trace and resold down the road
• Made in the USA
• Free USA Shipping
• 5 year warranty
N55 Stage 1 Vehicle Fitment
BMW 1 Series
• 2011-2013 E87 E82 E88 BMW 135i
• 2012-2015 F20 F21 N55 BMW M135
BMW 2 Series
• 2014-2015 F22 F23 N55 BMW M235i
• 2016-2017 F87 N55 BMW M2
• 2012-2013 F30 F31 N55 BMW 335i including xDrive, Active Hybrid, xDrive GT
• 2014-2015 F30 F31 N55 BMW 335i including xDrive, Active Hybrid, xDrive GT
BMW 4 Series
• 2014-2016 F32 F33 F36 BMW 435i including xDrive and Gran Coupe
BMW 5 Series
• 2010-2013 N55 F07 535 GT
• 2011-2016 N55 F10 F11 535
BMW 6 Series
• 2011–2018 N55 F13 640i Coupe
• 2011–2018 N55 F12 640i Convertible
• 2011–2018 N55 F06 640i Gran Coupe
BMW 7 Series
• 2012-2015 N55 BMW F01/F02 740i including xDrive
BMW X Series
• 2013-2015 N55 X1
• 2011-2017 N55 X3 X5 X6
• 2017+ N55 X4 M40
N20/N26 STAGE 1 APPLICATIONS
BMW 2 Series:
• 2014+ N20/N26 F22 F23 220/228
BMW 3 Series:
• 2012+ N20/N26 F30 320/328
BMW 4 Series:
• 2014+ N20/N26 F32 F33 F36 420/428
BMW 5 Series:
• 2011-2016 N20/N26 F10 / F11 520/528
BMW X Series
• 2013+ X1 E84 N20
• 2013+ X3 F25 N20
BMW Z Series
• 2013-2016 Z4 N20
S55 STAGE 1 APPLICATIONS
BMW M2
• 2018+ F87 M2 Competition (S55 Engine)
BMW M3
• 2015+ F80 M3
BMW M4
• 2015+ F82 M4
DYNO RESULTS
N55 Stage 1 Dyno Results
2014 M235 Comparing Dinan DTRONICS Stage 1 and BMS Stage 1
N20 Stage 1 Dyno Results
N20 Stage 1 VBOX Tests
M3/M4 S55 Stage1 Dyno Results
