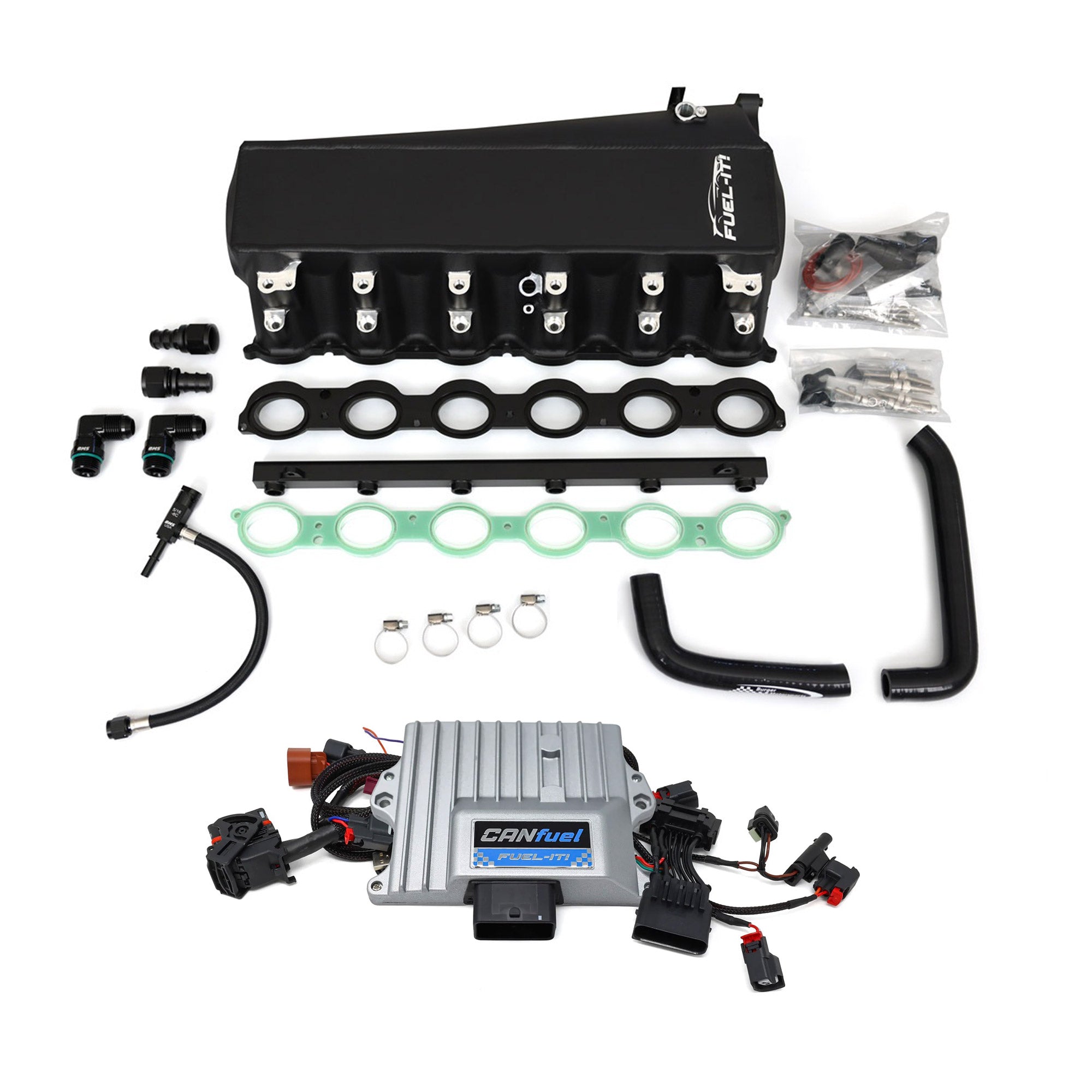

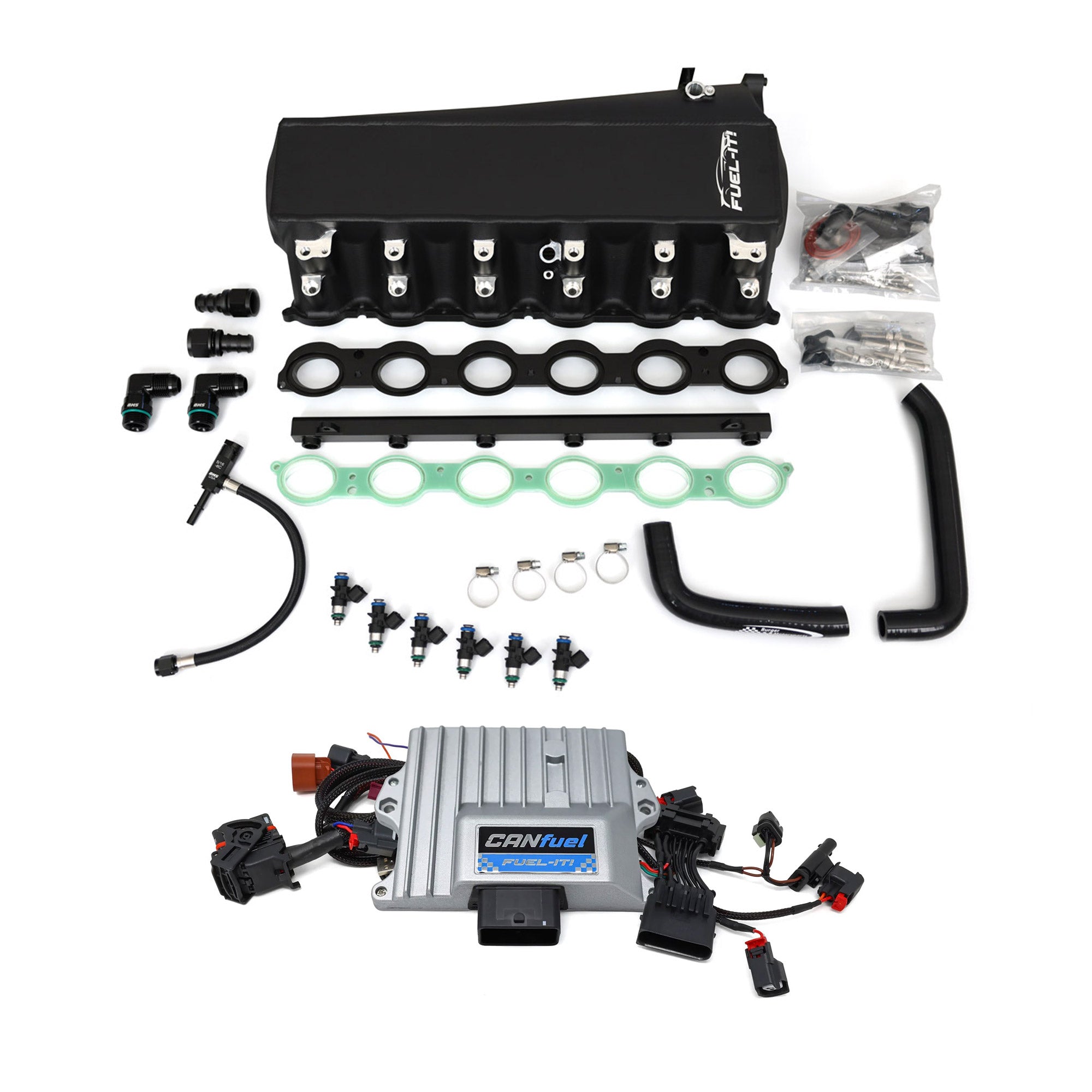

Fuel-It! Gen 2 B58 BMW Aluminum Port Injection Manifold

  • $2,299.00
Shipping calculated at checkout.

SKU: BMW-B58G1-PRM

This 2000hp capable port injection intake manifold with integrated high density intercooler core will take your Gen2 B58 build to the next level!

When it comes to intake manifolds it doesn't get any better than this. The Fuel-It! intake manifold replaces your weak factory plastic B58 manifold with a direct fit high flow high strength aluminum manifold. Features a huge intercooler core capable of supporting up to 2000hp, port injection bungs located on the top of the manifold for easy access and optimal injector spray pattern, and 1/8" expansion ports perfect for direct port nitrous, water/methanol, or anything else you can imagine! Includes high-quality o-rings and all required hardware.

Available with required port injection hardware (calibrated injectors with plug and play fuel line), or ala-cart without the extra fueling hardware. The optional high quality Bosch EV14 42mm fuel injectors are offered in 550cc, 750cc, and 950cc options. For most 700-800whp applications we suggest the 750cc injectors, while the 550cc injectors are suitable for applications below 700whp.

This kit includes a FREE ($99.00 Value) Burger Motorsports B58 Phenolic Thermal Intake Manifold Spacer
which is required for proper BMS manifold installation.

The Burger Motorsports B58 Phenolic Thermal Intake Manifold Spacer is constructed from fiber-embedded phenolic material and helps to prevent heat transfer from the cylinder head to the intake manifold, thereby increasing engine efficiency and decreasing heat soak. This advanced technology will lower intake air temperature, allowing denser air to enter the cylinders, thus reducing detonation and promoting more efficient combustion.

This kit includes FREE ($60.00 Value) Burger Motorsports Port injector plugs

For those not ready yet for port injection these dummy injectors fit in place of actual port injection injectors to block the holes. Allows use of port injection manifolds without actually having port injection.


FEATURES AND BENEFITS

• Increased Airflow
• Better cooling
• Integrated top mount port injection bungs
• Much stronger than stock
• Looks amazing under the hood
• Lightweight aluminum construction
• All factory connections
• Extra ports for direct port nitrous, water/meth, and more
• Extra ports for a BOV, Hobb's switch, or boost gauge
• Includes upgraded high-temperature o-rings
• All mounting hardware included

Vehicle Fitment
Gen 2 B58 powered BMW/Supra only (G chassis)

BMW 2 Series
• 2022+ G42 B58 BMW M240i and M240i xDrive

BMW 3 Series
• 2019+ G20 G21 B58 BMW M340i
and M340i xDrive

BMW 4 Series
• 2021+ G22 G23 G26 B58 BMW M440i and M440iX including
Gran Coupé

Toyota
• 2020+ Toyota GR Supra Mk5 B58 3.0L 6 cyl.



What's inside? Our 2000+ horsepower capable upgraded high flow air-to-water core for consistently cool intake charges run after run.

Optional Flow Matched Bosch® Port Fuel Injectors
These high quality Bosch EV14 42mm fuel injectors come packaged in flow matched sets of six and are compatible with the Fuel-It!, Phoenix Racing, and many other port injection kits.

550cc:
 Up to 650whp
750cc: Up to 750whp
950cc: 750whp and beyond!

Optional BMS JB4 Port Injection Controller
The Burger Motorsports JB4 Port Injection Controller attaches to the JB4 tuner allowing it to directly control both traditional port injection kits and water/methanol injection port injection kits.

Click here for the JB4 port injection FAQ and additional information on wiring and requirements. Click here to purchase the JB4 Port Injection Controller separately.

Optional Burger Motorsports Elite stainless steel braided fuel line. (included with injector purchase in this kit)
This heavy-duty fuel line is equipped with BMS Elite AN fittings and features an inner teflon seal for leak free operation, stainless steel braid, and a black outer nylon mesh for abrasion resistance and a stealthy look.
